JCB
Case
440
Skid Steer Loader
32 specifications
1 / 5

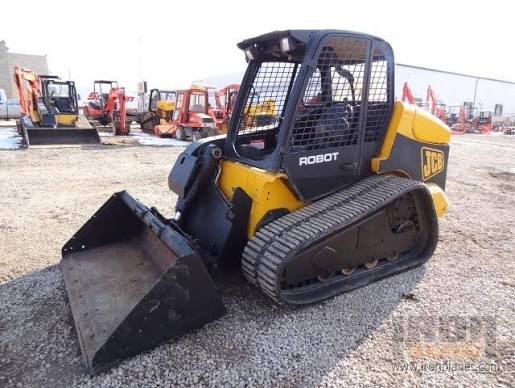

Image 1 of 5
Specifications
31 data points
Engine
| Engine Model | 1104C-44 |
|---|---|
| Displacement | 244 in³ |
| Power Measured @ | 2,200 rpm |
| Number of Cylinders | 4 |
| Aspiration | Turbo |
Dimensions
| Height - Top of Cab | 80 in |
|---|---|
| Wheelbase | 44 in |
| Width Over Tires | 67 in |
| Reach at Max Lift and Dump | 37 in |
| Length with Bucket | 138 in |
| Clearance at Max Lift and Dump | 96 in |
| Turning Radius from Center - inc bucket | 87 in |
| Turning Radius from Center - machine rear | 66 in |
| Length w/o Bucket | 98 in |
Loader
| Bucket Capacity | 0.71 yd³ |
|---|---|
| Operating Load Rating | 2,425 lb |
| Tipping Angle | 4,850 ° |
| Breakout Force | 4,387 psi |
Hydraulic
| Pump Flow Capacity | 20.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,682 psi |
| Pump Type | Hydrostatic drive pumps |
Operational
| Operating Weight | 8,214 lb |
|---|---|
| Max Speed | 6.9 mph |
| Fuel Capacity | 28.2 gal |
| Hydraulic System Fluid Capacity | 9.2 gal |
| Operating Voltage | 12 V |
| Tire Size | 12 x 16.5 - 10pr |
| Alternator Supplied Amperage | 72 A |
| Chain Box Fluid Capacity - each side | 3.3 gal |
| Engine Oil Fluid Capacity | 2.3 gal |
| Cooling System Fluid Capacity | 3.9 gal |
