JCB

150T

Compact Track Loader

Operating Weight
8,137 lb
Displacement
114 in³
Gross Power
56.0 hp
All compact track loaders

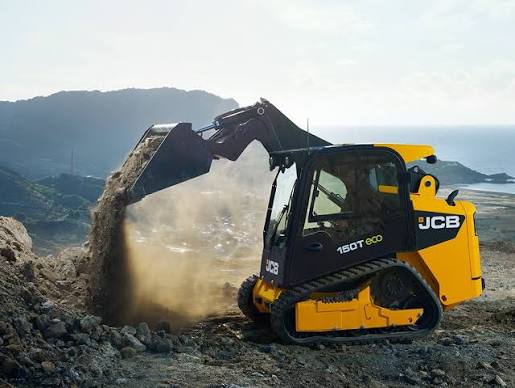

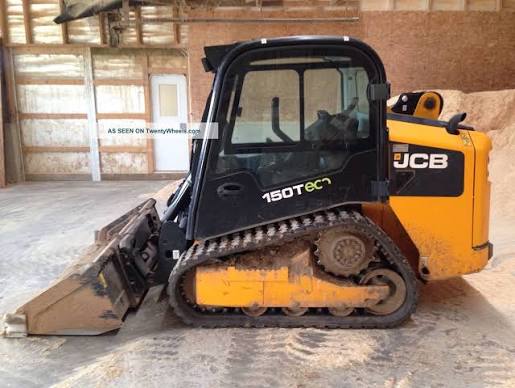

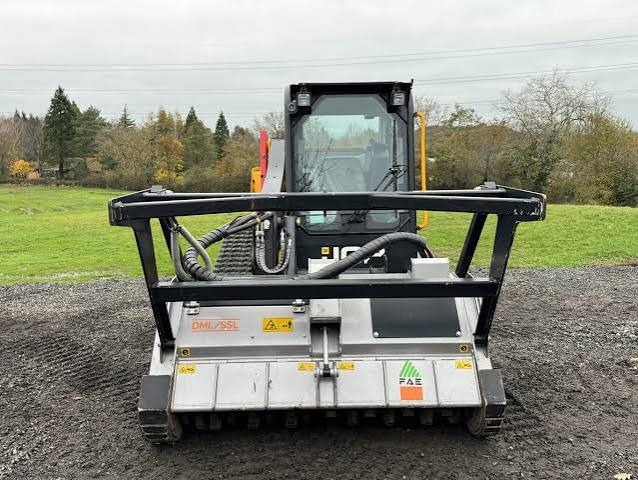

JCB 150T Compact Track Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,137 lb
Fuel Capacity25.9 gal
Hydraulic System Fluid Capacity11.5 gal
Cooling System Fluid Capacity2.7 gal
Engine Oil Capacity2.0 gal

Engine

Engine specifications
Engine ModelKohler KDI 1903TCR/26B
Displacement114 in³
Power Measured @2,400 rpm
Gross Power56.0 hp
AspirationTurbo
Torque Measured @1,200 rpm
Alternator100 A
Emissions CertificationEPA-T4F (EU St3B)
Cooling systemLiquid
Battery12 V
Peak Torque166 lb-ft
FuelDiesel
Engine oil service interval hours500
Starter motor2.0 hp

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab79 in
Reach at Max Lift and Dump40 in
Width Over Tracks67 in
Length with Bucket138 in
Clearance at Max Lift and Dump120 in
Dump Height91 in
Angle of departure27 °

Transmission

Transmission specifications
Travel Speed6.3 mph

Loader

Loader specifications
Bucket Capacity0.50 yd³
Tipping Angle4,284 °
Operating Load8,135 lb
Breakout Force—
Bucket Width66 in
