JCB

190

Skid Steer Loader

Operating Weight
7,717 lb
Bucket Capacity
0.71 yd³
Max Speed
6.9 mph
All skid steer loaders

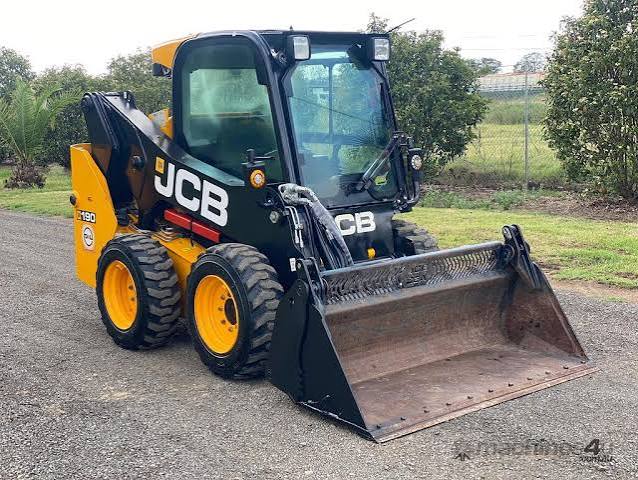

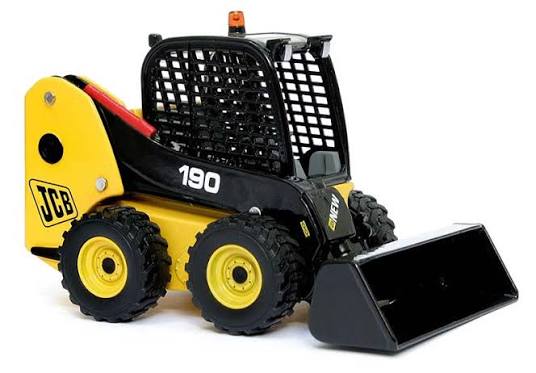

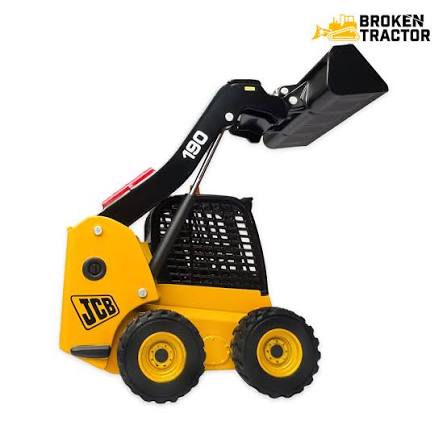

JCB 190 Skid Steer Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,717 lb
Max Speed6.9 mph
Fuel Capacity28.2 gal
Hydraulic System Fluid Capacity9.2 gal
Tire Size12 x 16.5 - 10 pr
Operating Voltage12 V
Alternator Supplied Amperage72 A
Engine Oil Fluid Capacity2.3 gal
Cooling System Fluid Capacity3.9 gal
Chain Box Fluid Capacity - each side3.3 gal

Engine

Engine specifications
Engine Model1104C-44
Displacement244 in³
Power Measured @2,200 rpm
Number of Cylinders4
AspirationNatural aspirated

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min
Relief Valve Pressure2,682 psi
Pump TypeHydrostatic drive pumps

Dimensions

Dimensions specifications
Height - Top of Cab80 in
Wheelbase44 in
Width Over Tires67 in
Reach at Max Lift and Dump25 in
Length with Bucket138 in
Clearance at Max Lift and Dump96 in
Turning Radius from Center - inc bucket87 in
Turning Radius from Center - machine rear66 in
Length w/o Bucket98 in

General Specifications

General Specifications specifications
Engine Power HP (KW)62 (46) Starting 2016 Model Year
Operating Width IN. (CM)63 (160) Starting 2016 Model Year
OPERATING LOAD LBS. (KG)1,900 (862) Starting 2016 Model Year

Loader

Loader specifications
Bucket Capacity0.71 yd³
Operating Load Rating1,985 lb
Tipping Angle3,969 °
Operating Width63 in
Breakout Force4,387 psi
