JCB
Case
440

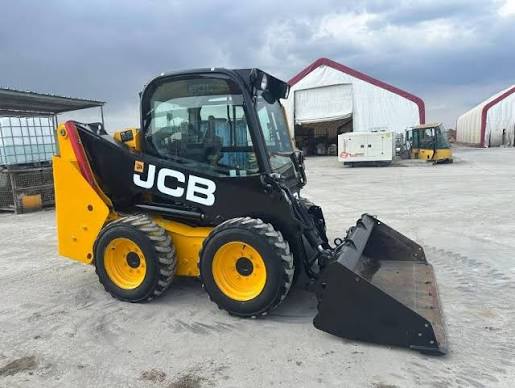

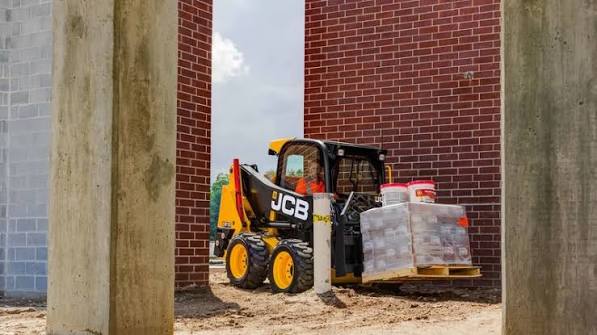

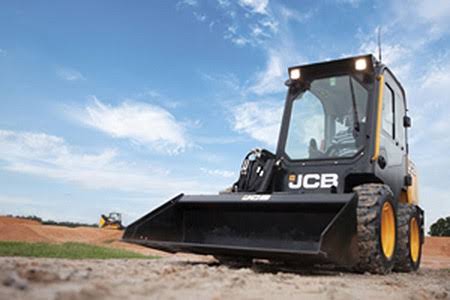

Skid Steer Loader
32 specifications
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight | 6,885 lb |
|---|
Engine
| Engine Model | Kohler - KDI2504TCR/26A |
|---|---|
| Displacement | 2,482 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 73.8 hp |
| Aspiration | Turbo |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 221 lb-ft |
| Alternator | 100 A |
| Emissions Certification | EPA-T4F (EU St3B) |
| Cooling system | Diesel |
| Battery | 12 V |
| Fuel | Diesel |
| Starter motor | 2.0 hp |
| Engine oil service interval | 500 h |
| Hydraulically driven cooling fan | Yes |
Hydraulic System
| Pump Flow Capacity | 18.5 gal/min |
|---|---|
| Relief Valve Pressure | 484 psi |
Dimensions
| Ground Clearance | 8 in |
|---|---|
| Wheelbase | 43 in |
| Overall Length | 138 in |
| Width Over Tires | 60 in |
| Overall Height | 78 in |
| Dump Height | 90 in |
| Angle of departure | 25 ° |
| Dump angle | 42 ° |
| Loadover height | 111,811 in |
| Reach @ ground level | 43 in |
| Pin height | 119 in |
| Rollback - Ground Level | 30 ° |
| Dig Depth | 394 in |
| Max. reach @ full height | 48 in |
| Rear chassis turning radius | 66 in |
| Bucket corner Turning radius | 83 in |
| Quick hitch Turning radius | 46 in |
Transmission
| Travel Speed | 7.5 mph |
|---|
Fluid Capacities
| Fuel Tank | 24.4 gal |
|---|---|
| Hydraulic system | 11.5 gal |
| Engine Oil | 2.0 gal |
| Engine coolant | 2.7 gal |
Tires & Wheels
| Standard | 10 x 16.5 - 8 PR Xtra Wall Off Road |
|---|
General Specifications
| Engine Power HP (KW) | 74 (55KW) Kohler Starting 2017 Model Year |
|---|---|
| Operating Width IN. (CM) | 65 (165) Starting 2017 Model Year |
| OPERATING LOAD LBS. (KG) | 2,114 (959) Starting 2017 Model Year |
Loader
| Bucket Capacity | 0.50 yd³ |
|---|---|
| Operating Load Rating | 2,114 lb |
| Operating Width | 65 in |
| Breakout Force | — |
| Bucket Width | 66 in |
| Loader lift capacity with bucket | 4,132 lb |
| Tipping load - no counterweight | 4,229 lb |
