JCB

330

Skid Steer Loader

Operating Weight
9,736 lb
Bucket Capacity
0.60 yd³
Max Speed
13.5 mph
Gross Power
92.0 hp
All skid steer loaders

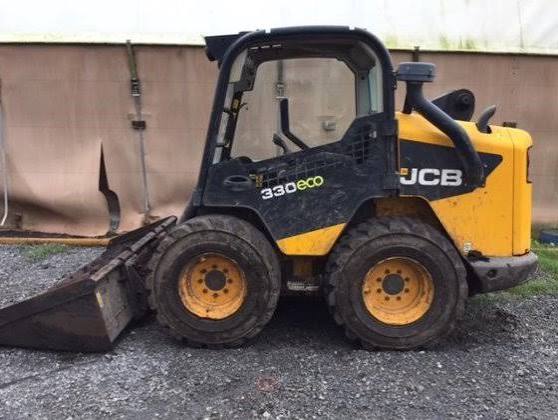

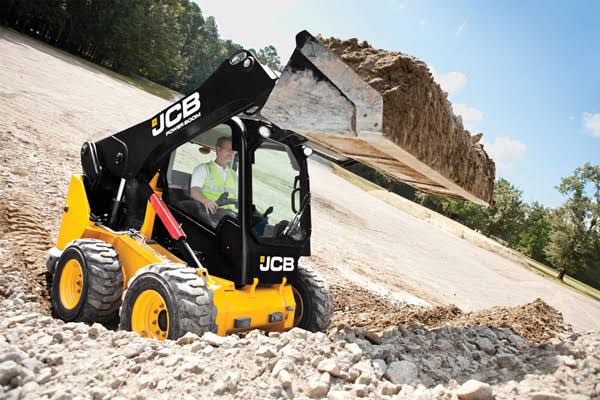

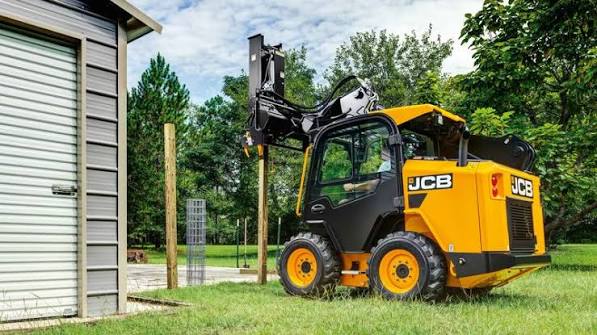

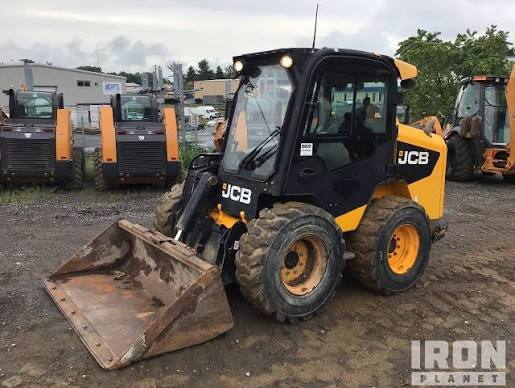

JCB 330 Skid Steer Loader
1 / 5
Image 1 of 5
Image: greenshieldsjcb.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,736 lb
Max Speed13.5 mph
Fuel Capacity27.3 gal
Hydraulic System Fluid Capacity14.6 gal
Tire Size12 x 16.5
Operating Voltage12 V
Alternator Supplied Amperage95 A
Engine Oil Fluid Capacity4.0 gal
Cooling System Fluid Capacity4.1 gal
Chain Box Fluid Capacity - each side6.1 gal
Operating Speed7.3 mph

Engine

Engine specifications
Engine ModelTC-68
Displacement268 in³
Power Measured @2,400 rpm
Gross Power92.0 hp
AspirationTurbocharged
Torque Measured @1,800 rpm
Max Torque301 lb-ft
Engine oil service interval500 h

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity23.8 gal/min
Relief Valve Pressure3,335 psi

Dimensions

Dimensions specifications
Ground Clearance9 in
Height - Top of Cab83 in
Wheelbase84 in
Width Over Tires76 in
Reach at Max Lift and Dump36 in
Length with Bucket150 in
Clearance at Max Lift and Dump98 in
Turning Radius from Center - inc bucket87 in
Turning Radius from Center - machine rear69 in
Dump angle42 °
Angle of departure29 °
Rollback - Ground Level30 °

Transmission

Transmission specifications
Travel Speed12.5 mph

Tires & Wheels

Tires & Wheels specifications
Standard14 x 17.5 - 12 PR Xtra Wall Off Road

General Specifications

General Specifications specifications
Engine Power HP (KW)74 (55) Starting 2016 Model Year
Operating Width IN. (CM)74 (188) Starting 2016 Model Year
OPERATING LOAD LBS. (KG)3,295 (1,495) Starting 2016 Model Year

Loader

Loader specifications
Bucket Capacity0.60 yd³
Operating Load Rating3,295 lb
Tipping Angle6,590 °
Operating Width74 in
Breakout Force—
Bucket Width75 in
Loader lift capacity with bucket6,056 lb
