JCB
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

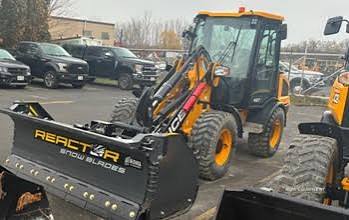

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 26.5 gal |
|---|---|
| Tire Size | 12.5x20 |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Operating Voltage | 12 V |
| Turning Radius | 155 in |
| Alternator Supplied Amperage | 65 A |
| Cooling System Fluid Capacity | 4.1 gal |
| Engine Oil Capacity | 2.9 gal |
| Static Tipping Load - Bucket | 6,645 lb |
| Front Diff Fluid Capacity | 2.6 gal |
| Rear Diff Fluid Capacity | 2.8 gal |
| Static Tipping Load - Forks | 4,850 lb |
Engine
| Engine Model | ECE R49.4 |
|---|---|
| Displacement | 299 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 65.0 hp |
| Net Power | 63.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 183 lb-ft |
Hydraulic System
| Pump Flow Capacity | 17.0 gal/min |
|---|---|
| Relief Valve Setting | 3,191 psi |
| Pump Type | single gear pump with priority supply to steering circuit at all times |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 103 in |
| Wheelbase | 79 in |
| Width Over Tires | 67 in |
| Hinge Pin - Max Height | 122 in |
| Reach at Max Height and Dump | 26 in |
| Dump Clearance at Max Lift | 98 in |
| Length w/ Bucket on Ground | 196 in |
| Max Lift Height | 118 in |
| Fork Tine Length | 48 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Bucket Capacity - struck | 0.80 yd³ |
| Breakout Force | 9,923 lb |
