JCB

407ZX

Wheel Loader

Gross Power
75.0 hp
Net Power
67.0 hp
All wheel loaders

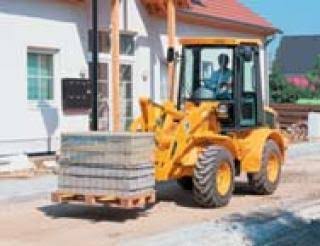

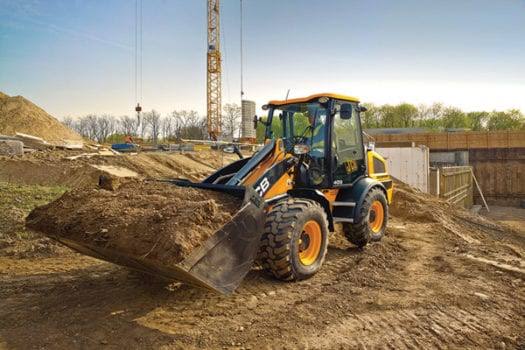

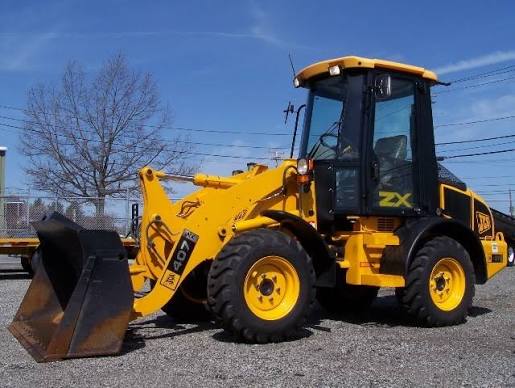

JCB 407ZX Wheel Loader
1 / 5
Image 1 of 5
Image: jcb.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity26.5 gal
Tire Size12.5 x 18
Hydraulic System Fluid Capacity22.5 gal
Operating Voltage12 V
Engine Oil Fluid Capacity2.5 gal
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity2.6 gal
Rear Axle/Diff Fluid Capacity2.8 gal
Engine Oil Capacity2.5 gal
Static Tipping Load - Bucket6,810 lb
Front Diff Fluid Capacity2.5 gal
Rear Diff Fluid Capacity2.8 gal

Engine

Engine specifications
Engine Model1104C-44
Power Measured @2,000 rpm
Gross Power75.0 hp
Net Power67.0 hp
Number of Cylinders4
Torque Measured @1,400 rpm
Max Torque223 lb-ft

Hydraulic System

Hydraulic System specifications
Raise Time5.0 s
Lower Time3.2 s
Dump Time1.0 s
Relief Valve Setting3,191 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab103 in
Wheelbase79 in
Reach at Max Lift and Dump26 in
Length with Bucket on Ground198 in
Hinge Pin - Max Height122 in
Reach at Max Height and Dump26 in
Length w/ Bucket on Ground198 in
Dump Clearance at Max Lift122 in
Max Lift Height118 in
Fork Tine Length48 in

Transmission

Transmission specifications
Max Speed - Forward12.5 mph
Max Speed - Reverse12.5 mph
Transmission TypeHydrostatic
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Dump Clearance at Max Raise98 in
Breakout Force10,364 lb
Bucket Width70 in
