JCB
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

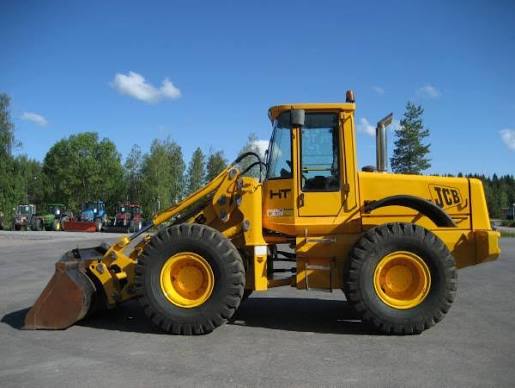

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Fuel Capacity | 56.1 gal |
|---|---|
| Tire Size | 17.5x25x12 ply (L2) |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 3.9 gal |
| Rear Axle Oscillation | 25 ° |
| Alternator Supplied Amperage | 55 A |
| Front Axle/Diff Fluid Capacity | 6.9 gal |
| Rear Axle/Diff Fluid Capacity | 6.9 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 6.1 gal |
Engine
| Engine Model | 1006-60T |
|---|---|
| Displacement | 365 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 144.0 hp |
| Net Power | 132.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 58.2 gal/min |
|---|---|
| Raise Time | 4.8 s |
| Lower Time | 3.4 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,212 psi |
| Pump Type | variable displacement piston pumps with load sensing system |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 125 in |
| Wheelbase | 115 in |
| Width Over Tires | 95 in |
| Reach at Max Lift and Dump | 40 in |
| Length with Bucket on Ground | 258 in |
| Hinge Pin - Max Height | 151 in |
Transmission
| Max Speed - Forward | 23.6 mph |
|---|---|
| Max Speed - Reverse | 16.8 mph |
| Transmission Type | 4 wheel drive semi-autoshift full powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 2.39 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 27,427 lb |
| Bucket Width | 98 in |
