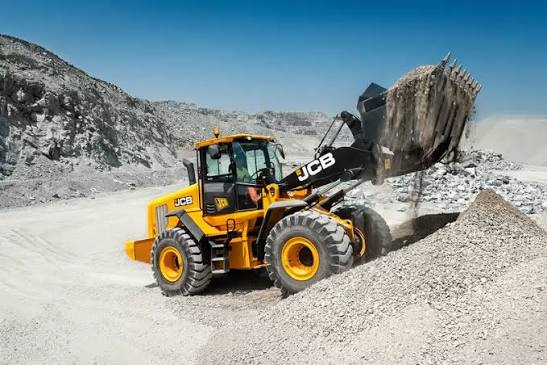

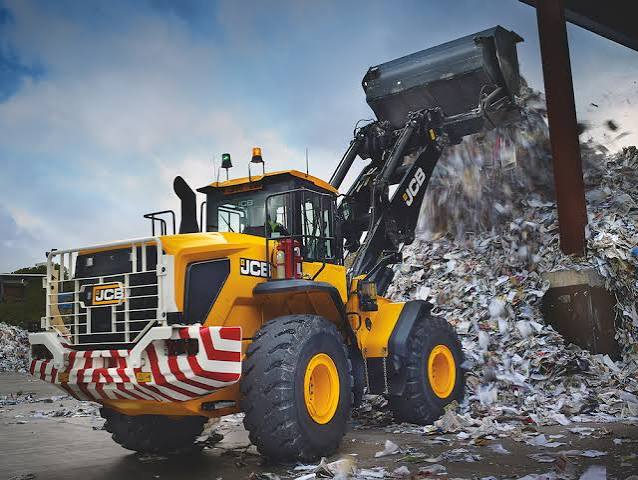

JCB
446ZX High Lift
- Operating Weight
- 45,492 lb
- Bucket Capacity - heaped
- 3.70 yd³
- Gross Power
- 193.0 hp
- Net Power
- 185.0 hp
1 / 5
Image 1 of 5
Specifications
45 data points
Operating Specifications
| Operating Weight | 45,492 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Tire Size | 23.5R25 HXA (L3) |
| Hydraulic System Fluid Capacity | 56.8 gal |
| Static Tipping Weight | 23,003 lb |
| Operating Voltage | 24 V |
| Turning Radius | 268 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 25 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 18.3 gal |
| Rear Axle/Diff Fluid Capacity | 13.5 gal |
| Cooling System Fluid Capacity | 10.6 gal |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Engine Model | 6CT8.3C |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 193.0 hp |
| Net Power | 185.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 43.1 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 4.1 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | twin variable displacement piston pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 131 in |
| Width Over Tires | 107 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 336 in |
| Hinge Pin - Max Height | 185 in |
Transmission
| Max Speed - Forward | 23.3 mph |
|---|---|
| Max Speed - Reverse | 15.2 mph |
| Transmission Type | smooth shift powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 3.70 yd³ |
|---|---|
| Bucket Capacity - struck | 3.30 yd³ |
| Dump Clearance at Max Raise | 134 in |
| Breakout Force | 36,869 lb |
| Bucket Width | 113 in |
