JCB
456HT High Lift
- Operating Weight
- 47,036 lb
- Bucket Capacity - heaped
- 4.90 yd³
- Gross Power
- 207.0 hp
- Net Power
- 215.0 hp
1 / 5

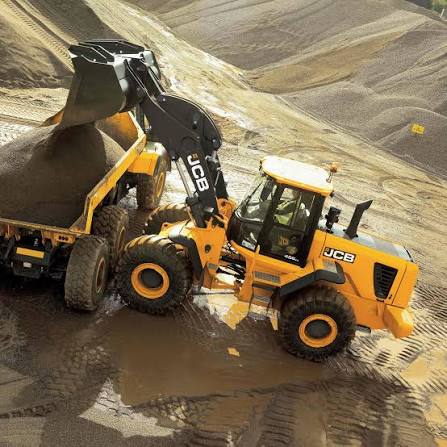

Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 47,036 lb |
|---|---|
| Fuel Capacity | 84.0 gal |
| Tire Size | 23.5R25 XHA (L3) |
| Hydraulic System Fluid Capacity | 57.0 gal |
| Static Tipping Weight | 21,363 lb |
| Operating Voltage | 24 V |
| Turning Radius | 126 in |
| Engine Oil Fluid Capacity | 5.0 gal |
| Rear Axle Oscillation | 25 ° |
| Alternator Supplied Amperage | 70 A |
| Front Axle/Diff Fluid Capacity | 18.0 gal |
| Rear Axle/Diff Fluid Capacity | 13.0 gal |
| Cooling System Fluid Capacity | 10.5 gal |
| Transmission Fluid Capacity | 9.0 gal |
Engine
| Engine Model | QSC 8.3 |
|---|---|
| Displacement | 8 in³ |
| Gross Power | 207.0 hp |
| Net Power | 215.0 hp |
| Aspiration | Turbo charged |
Hydraulic System
| Pump Flow Capacity | 43.0 gal/min |
|---|---|
| Raise Time | 5.8 s |
| Lower Time | 4.1 s |
| Dump Time | 1.2 s |
| Relief Valve Setting | 3,625 psi |
| Pump Type | Twin variable displacement piston pump |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 83 in |
| Width Over Tires | 107 in |
| Reach at Max Lift and Dump | 53 in |
| Length with Bucket on Ground | 373 in |
| Hinge Pin - Max Height | 197 in |
Transmission
| Max Speed - Forward | 23.4 mph |
|---|---|
| Max Speed - Reverse | 15.3 mph |
| Transmission Type | Smooth shift powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.90 yd³ |
|---|---|
| Bucket Capacity - struck | 3.81 yd³ |
| Dump Clearance at Max Raise | 157 in |
| Bucket Width | 113 in |
