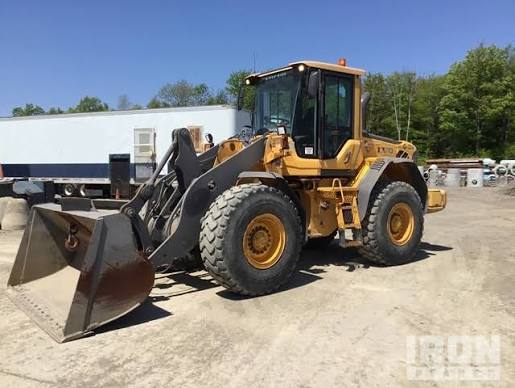

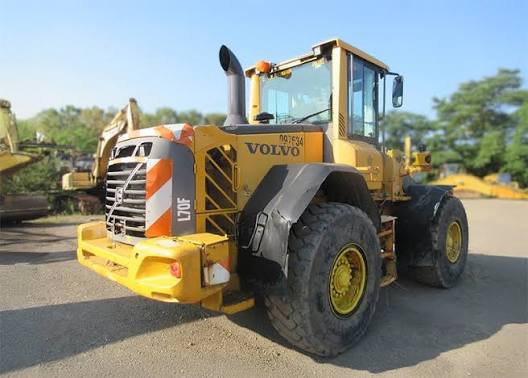

Volvo
L70F
- Operating Weight
- 28,350 lb
- Bucket Capacity - heaped
- 2.69 yd³
- Gross Power
- 169.0 hp
- Net Power
- 168.0 hp
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 28,350 lb |
|---|---|
| Fuel Capacity | 59.2 gal |
| Tire Size | 20.5 R25 L2 |
| Hydraulic System Fluid Capacity | 23.8 gal |
| Static Tipping Weight | 20,410 lb |
| Operating Voltage | 24 V |
| Turning Radius | 211 in |
| Engine Oil Fluid Capacity | 5.3 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 9.3 gal |
| Rear Axle/Diff Fluid Capacity | 7.1 gal |
| Cooling System Fluid Capacity | 7.9 gal |
| Transmission Fluid Capacity | 5.3 gal |
| Rated Bucket Capacity | 2.60 – 8.40 yd³ |
Engine
| Engine Model | D6E LBE3 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 169.0 hp |
| Net Power | 168.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,600 rpm |
| Make | Volvo |
Weights
| Operating Weight | 29,580 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 41.0 gal/min |
|---|---|
| Raise Time | 5.3 s |
| Lower Time | 2.7 s |
| Dump Time | 2.7 s |
| Relief Valve Setting | 3,770 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 130 in |
| Wheelbase | 119 in |
| Width Over Tires | 98 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 294 in |
| Hinge Pin - Max Height | 152 in |
Transmission
| Max Speed - Forward | 27.7 mph |
|---|---|
| Max Speed - Reverse | 27.7 mph |
| Transmission Type | Volvo HTE 120 |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 2.69 yd³ |
|---|---|
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 20,310 lb |
| Bucket Width | 101 in |
