JCB

4CX Sitemaster

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
23.7 mph
Gross Power
100.0 hp
Net Power
97.6 hp
All backhoe loaders

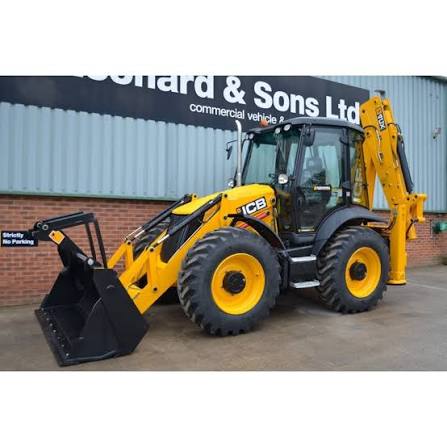

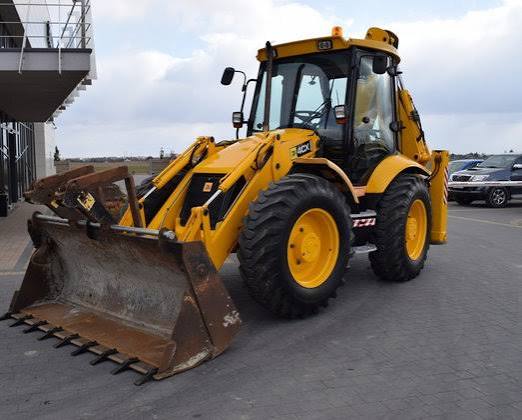

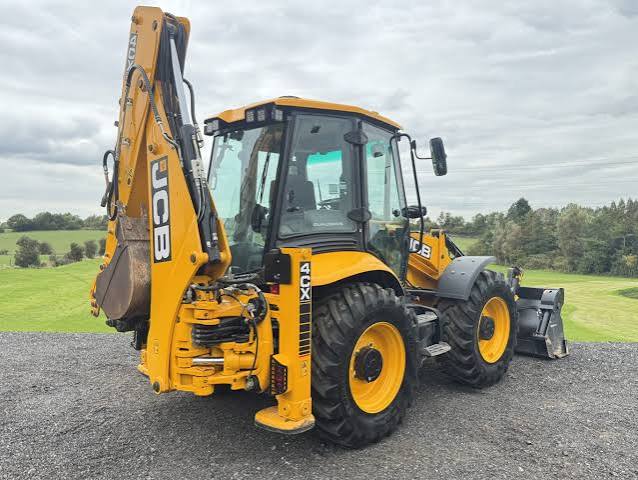

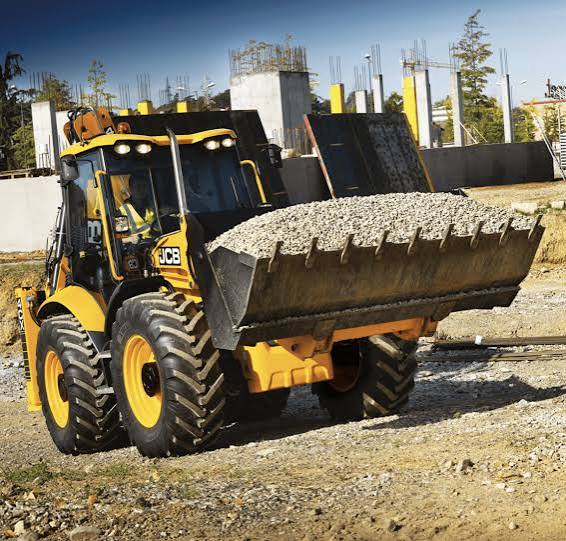

JCB 4CX Sitemaster Backhoe Loader
1 / 5
Image 1 of 5
Image: gunnjcb.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity42.3 gal
Hydraulic System Fluid Capacity34.9 gal
Cooling System Fluid Capacity4.9 gal
Tire Size Front - 2wd / 4wd16.9x28 10PR Industrial
Operating Voltage12 V
Oil System Fluid Capacity4.0 gal
Alternator Supplied Amperage95 A
Transmission Fluid Capacity4.3 gal
Rear Axle Fluid Capacity4.3 gal
Front Axle Fluid Capacity4.3 gal

Engine

Engine specifications
Displacement269 in³
Power Measured @2,200 rpm
Gross Power100.0 hp
Net Power97.6 hp
Aspirationturbocharged
Torque Measured @1,300 rpm
Net Max Torque308 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.4 gal/min
Relief Valve Pressure3,650 psi
Pump Typeopen centre systen with twin gear pumps and hydraulic speed control

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase88 in
Transport Width94 in
Transport Length233 in
Height to Top of Suspended Cab114 in

Transmission

Transmission specifications
Max Speed23.7 mph
Max Speed - Reverse23.7 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepowershift

Tires & Wheels

Tires & Wheels specifications
Rear Tires Size16.9x28 10PR Industrial

Backhoe

Backhoe specifications
Dig Depth170 in
Reach From Swivel214 in
Dig Depth - Extended219 in
Load Height - Extended169 in
Bucket Dig Force11,847 lb
Reach From Swivel - Extended257 in
Reach at Load Height - Extended149 in
Bucket Dig Force - Extended11,847 lb

Loader

Loader specifications
Bucket Capacity1.40 yd³
Clearance at Max Dump Height107 in
Bucket Breakout Force14,498 lb
Bucket Width93 in
Reach at Max Dump Height47 in
Dig Depth7 in
