JCB
Hydrema
912HM
Off-Highway Truck
11 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 52.8 gal |
|---|---|
| Tire Size | Michelin 20.5 R25 |
| Engine Oil Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 7.9 gal |
| Hydraulic System Fluid Capacity | 23.3 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 9.2 gal |
Engine
| Engine Model | 6BTAA |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 150.0 hp |
| Net Power | 143.5 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbo charged/charged cooled |
| Torque Measured @ | 1,500 rpm |
| Max Torque | 465 lb-ft |
| Make | Cummins |
Weights
| Operating Weight | 24,100 lb |
|---|---|
| Total Empty | 22,355 lb |
| Front Axle - empty | 14,043 lb |
| Total Loaded | 51,015 lb |
| Rear Axle - empty | 8,311 lb |
| Front Axle - loaded | 19,775 lb |
| Rear Axle - loaded | 31,240 lb |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 144 in |
| Overall Length | 268 in |
| Overall Width | 100 in |
| Overall Height | 135 in |
| Dump Height | 152 in |
| Dump Ground Clearance | 28 in |
Transmission
| Max Speed | 24.8 mph |
|---|---|
| Transmission Type | Smoothshift |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
Drive System
| Drive Config | 4x4 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 28,969 lb |
|---|---|
| Dump Angle | 84 ° |
| Raise Time | 9.7 s |
| Lower Time | 10.0 s |
| Capacity - Heaped | 9.60 yd³ |

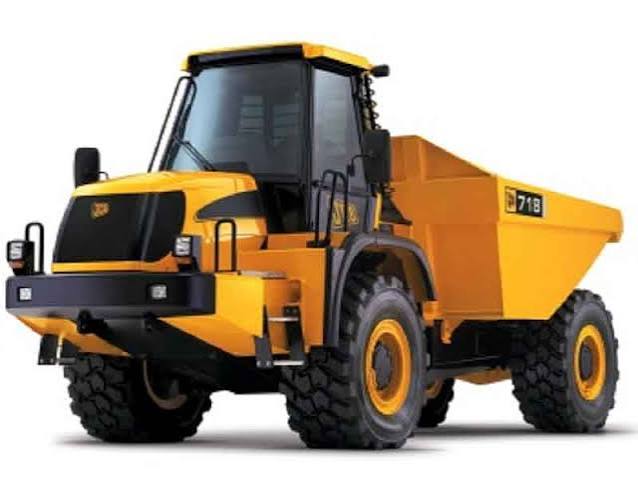

Comparable machines
