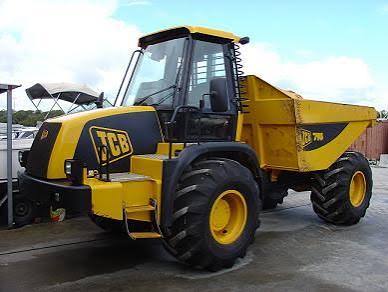

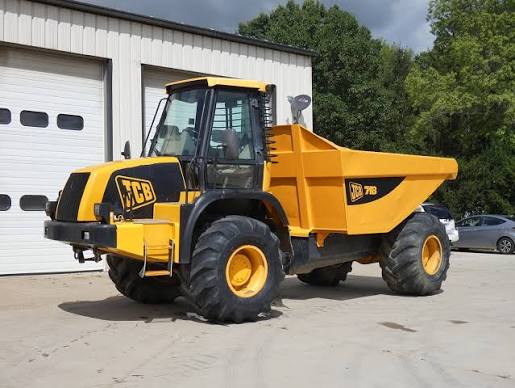

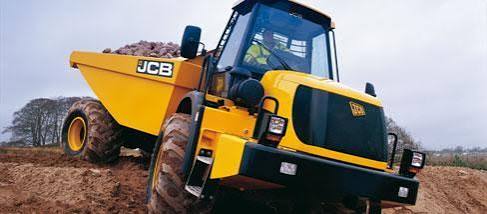

JCB
Hydrema
912HM
Off-Highway Truck
11 specifications
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Fuel Capacity | 55.5 gal |
|---|---|
| Tire Size | 650/65R25 |
| Engine Oil Capacity | 4.3 gal |
| Cooling System Fluid Capacity | 8.7 gal |
| Hydraulic System Fluid Capacity | 42.3 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 A |
| Transmission Fluid Capacity | 9.2 gal |
Engine
| Engine Model | 6BTAA |
|---|---|
| Displacement | 360 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 173.0 hp |
| Net Power | 168.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged/charge cooled |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 580 lb-ft |
| Make | Cummins |
Weights
| Operating Weight | 28,572 lb |
|---|---|
| Total Empty | 27,448 lb |
| Front Axle - empty | 16,799 lb |
| Total Loaded | 63,449 lb |
| Rear Axle - empty | 10,648 lb |
| Front Axle - loaded | 24,361 lb |
| Rear Axle - loaded | 39,088 lb |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Wheelbase | 167 in |
| Overall Length | 296 in |
| Overall Width | 103 in |
| Overall Height | 141 in |
| Dump Height | 178 in |
| Dump Ground Clearance | 19 in |
Transmission
| Max Speed | 31.1 mph |
|---|---|
| Transmission Type | Smoothshift |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 3 |
Drive System
| Drive Config | 4x4 |
|---|
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 36,000 lb |
|---|---|
| Dump Angle | 84 ° |
| Raise Time | 12.0 s |
| Lower Time | 8.0 s |
| Capacity - Heaped | 12.60 yd³ |

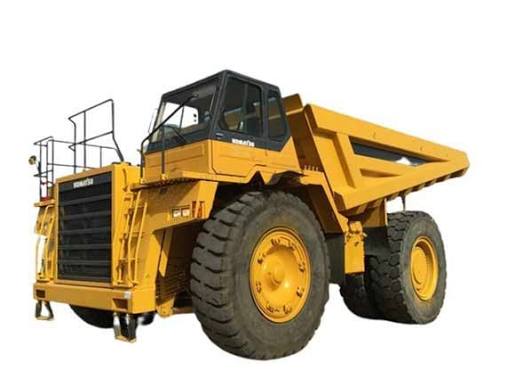

Comparable machines
