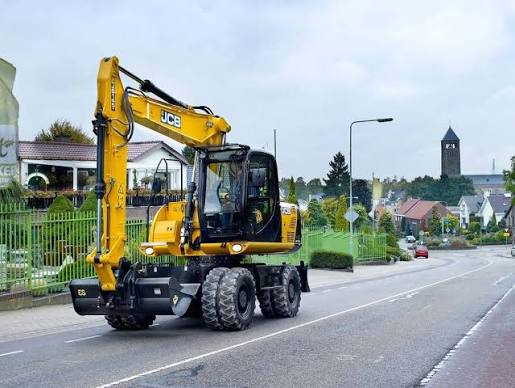

Image 1 of 5
Specifications
60 data points
Operating Specifications
| Fuel Capacity | 63.5 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 73.0 gal/min |
| Hydraulic System Fluid Capacity | 32.8 gal |
| Hydraulic System Relief Valve Pressure | 4,974 psi |
| Engine Oil Capacity | 3.9 gal |
| Cooling System Fluid Capacity | 4.4 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 50 A |
| Hydraulic Pump Type | load sensed hydraulic system with variable flow piston pumps providing flow on demand for maximum efficiency |
| Tire Size | twins: 10x20 16PR singles: 18Rx19.5(radials) |
| Oscillating Axle Angle | 17 ° |
| Front Diff Fluid Capacity | 3.7 gal |
| Rear Diff Fluid Capacity | 3.2 gal |
Engine
| Engine Model | JCB EcoMAX 444 TCA EU Stage IV EPA Tier 4 Final compliant |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 109.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Engine Type | 4-stroke 4-cyclinder in-line common rail direct injection turbo charged and intercooled diesel |
| Cooling system | Large capacity radiator |
| Air filter type | Dry element with secondary safety element and in cab warning indicator |
| Rated Power | 124.8 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 120 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 49 in |
Transmission
| Max Travel Speed | 18.7 mph |
|---|---|
| Transmission Type | hydrostatic powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 189 in |
|---|---|
| Max Cutting Height | 362 in |
| Max Reach Along Ground | 306 in |
| Max Loading Height | 268 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 120 in |
| Max Vertical Wall Dig Depth | 166 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 204 in |
|---|---|
| Max Cutting Height | 373 in |
| Max Reach Along Ground | 320 in |
| Max Loading Height | 278 in |
| Shipping Height of Unit | 120 in |
| Shipping Length of Unit | 300 in |
| Max Vertical Wall Dig Depth | 181 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 224 in |
|---|---|
| Max Cutting Height | 385 in |
| Max Reach Along Ground | 339 in |
| Max Loading Height | 292 in |
| Shipping Height of Unit | 120 in |
| Shipping Length of Unit | 301 in |
| Max Vertical Wall Dig Depth | 199 in |
Boom/Stick Mobile Excavator Option 4
| Max Digging Depth | 198 in |
|---|---|
| Max Cutting Height | 381 in |
| Max Reach Along Ground | 322 in |
| Max Loading Height | 287 in |
| Shipping Height of Unit | 120 in |
| Shipping Length of Unit | 288 in |
| Max Vertical Wall Dig Depth | 168 in |
