JCB
Liugong

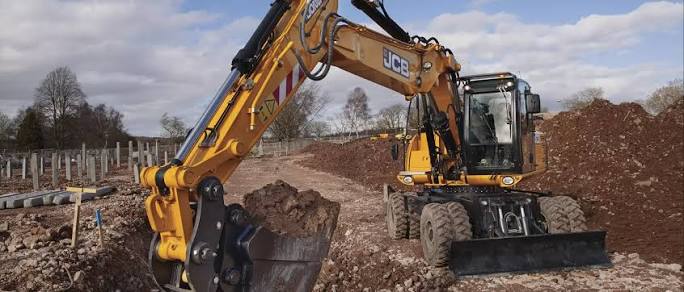

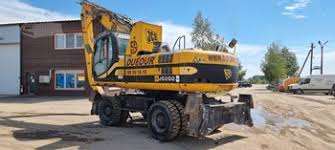

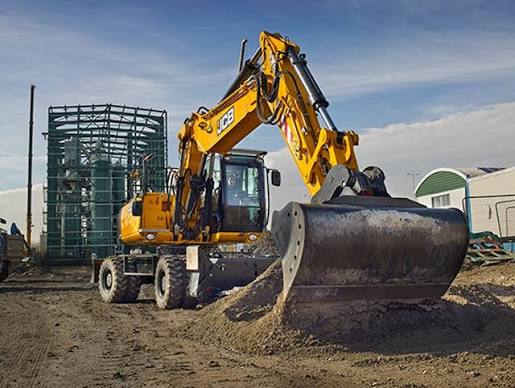

936E
Excavator
Specifications pending
1 / 5
Image 1 of 5
Specifications
50 data points
Operating Specifications
| Fuel Capacity | 81.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 105.5 gal/min |
| Hydraulic System Fluid Capacity | 52.9 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 5.2 gal |
| Cooling System Fluid Capacity | 6.8 gal |
| Operating Voltage | 24 V |
| Hydraulic Pump Type | load sensed hydraulic system with variable flow piston pump providing flow on demand for maximum efficiency |
| Tire Size | twins: 11x20 10PR singles: 18Rx22.5 (Radials) |
| Oscillating Axle Angle | 17 ° |
Engine
| Engine Model | JCB EcoMAX 448 TCA-99 Eu Stage IIIB EPA Tier 4 interim compliant |
|---|---|
| Displacement | 293 in³ |
| Power Measured @ | 1,950 rpm |
| Net Power | 138.0 hp |
| Number of Cylinders | 4 |
| Aspiration | turbocharged |
| Engine Type | Water cooled 4-stroke 4-cylinder in-line direct injection turbocharged diesel. |
| Alternator | 55 A |
| Air filter type | Dry element with secondary safety element and in cab warning indicator. |
| Rated Power | 172.0 hp |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 125 in |
| Overall Width | 8 in |
| Upper Structure Clearance | 52 in |
Transmission
| Max Travel Speed | 18.7 mph |
|---|---|
| Transmission Type | hydrostatic powershift |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Swing Mechanism
| Swing Speed | 10 rpm |
|---|
Boom/Stick Mobile Excavator Option 1
| Max Digging Depth | 207 in |
|---|---|
| Max Cutting Height | 362 in |
| Max Reach Along Ground | 350 in |
| Max Loading Height | 256 in |
| Shipping Length of Unit | 373 in |
| Shipping Height of Unit | 121 in |
| Max Vertical Wall Dig Depth | 179 in |
Boom/Stick Mobile Excavator Option 2
| Max Digging Depth | 228 in |
|---|---|
| Max Cutting Height | 372 in |
| Max Reach Along Ground | 367 in |
| Max Loading Height | 267 in |
| Shipping Height of Unit | 157 in |
| Shipping Length of Unit | 369 in |
| Max Vertical Wall Dig Depth | 206 in |
Boom/Stick Mobile Excavator Option 3
| Max Digging Depth | 251 in |
|---|---|
| Max Cutting Height | 379 in |
| Max Reach Along Ground | 389 in |
| Max Loading Height | 276 in |
| Shipping Height of Unit | 114 in |
| Shipping Length of Unit | 366 in |
| Max Vertical Wall Dig Depth | 230 in |
