JCB

JS220XD

Excavator

Max Digging Depth
260 in
All excavators

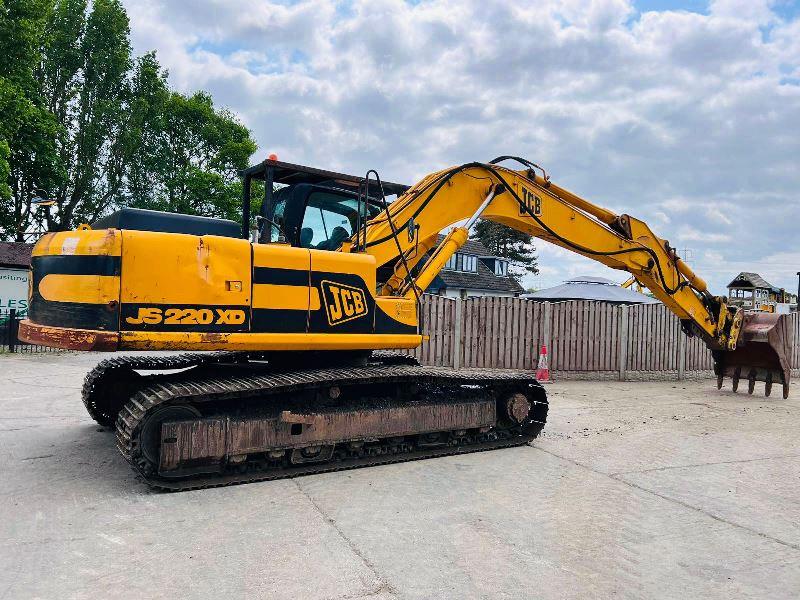

JCB JS220XD Excavator
1 / 5
Image 1 of 5
Image: diggerbidder.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Hydraulic Pump Flow Capacity77.7 gal/min
Hydraulic System Relief Valve Pressure4,975 psi
Operating Voltage24 V
Alternator Supplied Amperage40 A

Engine

Engine specifications
Engine ModelBB-6BGIT
Displacement396 in³

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab125 in
Length of Track on Ground145 in
Tail Swing Radius114 in
Width to Outside of Tracks119 in
Removal Counterweight Clearance42 in
Digging Depth260 in
Digging Reach389 in

Undercarriage

Undercarriage specifications
Track Gauge95 in
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth260 in
Max Reach Along Ground381 in
