JCB

JS260XD

Excavator

Max Digging Depth
284 in
All excavators

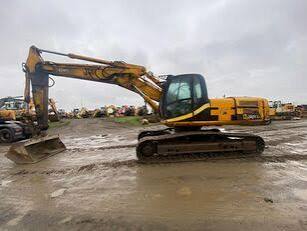

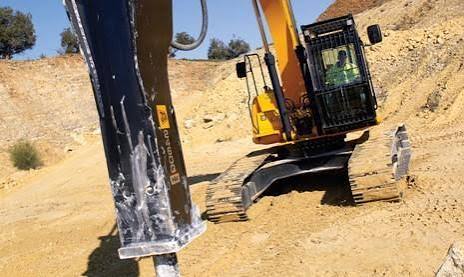

JCB JS260XD Excavator
1 / 5
Image 1 of 5
Image: oemoffhighway.com

Specifications

16 data points

Operating Specifications

Operating Specifications specifications
Hydraulic Pump Flow Capacity89.6 gal/min
Hydraulic System Relief Valve Pressure4,975 psi

Engine

Engine specifications
Engine ModelBB-6BGIT
Displacement396 in³

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab127 in
Length of Track on Ground151 in
Tail Swing Radius121 in
Width to Outside of Tracks126 in
Removal Counterweight Clearance44 in
Digging Depth284 in
Digging Reach420 in

Undercarriage

Undercarriage specifications
Track Gauge102 in
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth284 in
Max Reach Along Ground394 in
