JCB
Dynapac
CA182D
Smooth Drum Roller
20 specifications
1 / 5
Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 31,967 lb |
|---|---|
| Max Speed | 7.1 mph |
| Fuel Capacity | 105.7 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Engine Oil Capacity | 3.9 gal |
| Alternator Supplied Amperage | 95 A |
| Cooling System Fluid Capacity | 5.1 gal |
Engine
| Engine Model | B5.9 - 173C |
|---|---|
| Displacement | 359 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 173.0 hp |
| Number of Cylinders | 6 |
| Aspiration | turbocharged |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Wheelbase | 10 in |
| Overall Length | 19 in |
| Overall Width | 90 in |
Tires & Wheels
| Tires | 23.1-26/8 PR AWT |
|---|
Drum
| Drum Width | 83 in |
|---|---|
| Drum Diameter | 59 in |
| Vibration Frequency 1 | 29 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 43,163 lb |
| Vibration Frequency 2 | 35 vpm |
| Static Linear Load | 18 lb-ft |

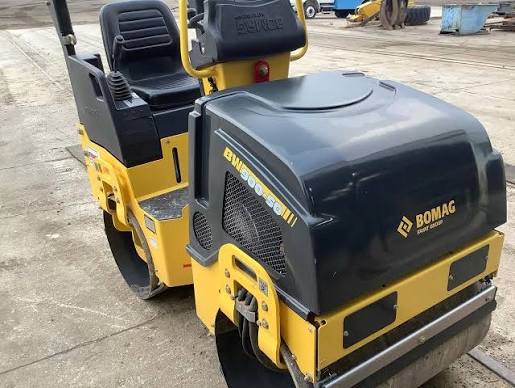

Comparable machines
