BOMAG

BW 9 ASW

Smooth Drum Roller

Max Speed
10.2 mph
Gross Power
84.0 hp
All smooth drum rollers

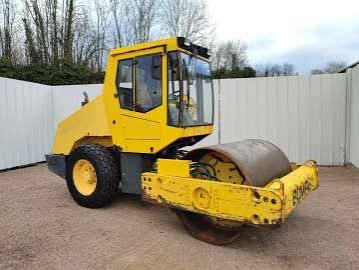

BOMAG BW 9 ASW Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Max Speed10.2 mph
Fuel Capacity33.9 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity15.1 gal
Cooling System Fluid Capacity4.0 gal
Spray Water Capacity170.4 gal

Engine

Engine specifications
Engine Model4B3.3TAA
Power Measured @2,400 rpm
Gross Power84.0 hp
Number of Cylinders4

Weights

Weights specifications
Operating Weight - standard14,080 lb
Operating Weight - max ballast19,320 lb
Max Static Linear Load - Drive Drum16 lb-ft
Max Static Linear Load - guide drum13 lb-ft

Dimensions

Dimensions specifications
Ground Clearance17 in
Wheelbase133 in
Overall Length15 in
Overall Width64 in
Height - Top of ROPS/FOPS108 in
Height74 in
Drum Diameter - Front41 in
Drum Diameter - Rear54 in
