JLG

25RTS

Aerial Lift

Max Platform Height
300 in
Overall Length
13 in
Overall Width
90 in
All aerial lifts

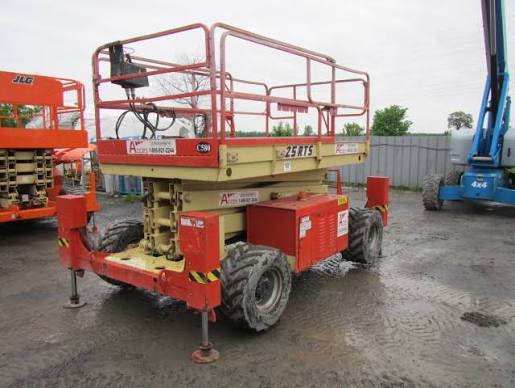

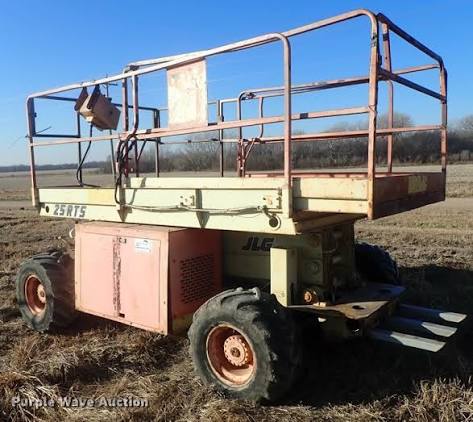

JLG 25RTS Aerial Lift
1 / 5
Image 1 of 5
Image: skytrak.com

Specifications

22 data points

Engine

Engine specifications
Engine ModelVSG-413
Gross Power35.0 hp
Fuel TypeDual

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase98 in
Overall Length13 in
Overall Width90 in
Turning Radius293 in
Height w/o Rails83 in

Performance

Performance specifications
Operating Weight8,500 lb
Max Speed3.5 mph
Tire Size12x16.5
Hydraulic System Fluid Capacity20.0 gal
Fuel Capacity15.0 gal

Platform

Platform specifications
Max Platform Height300 in
Max Platform Weight Capacity2,000 lb
Platform Inner Length126 in
Platform Inner Width71 in
Lift Time55.0 s
Deck Extension48 in
Lower Time35.0 s
Height of Rails44 in
