JLG

3394RT

Aerial Lift

Max Platform Height
397 in
Overall Length
13 in
Overall Width
95 in
All aerial lifts

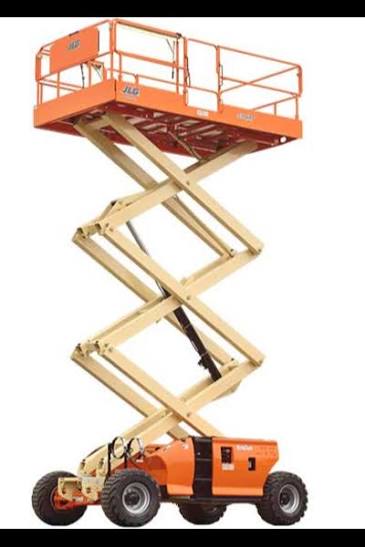

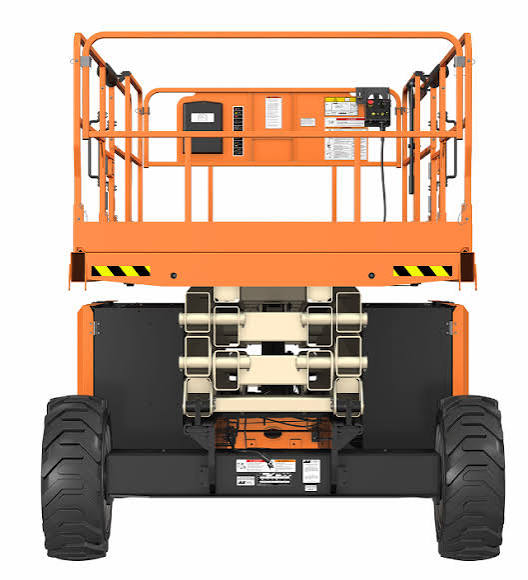

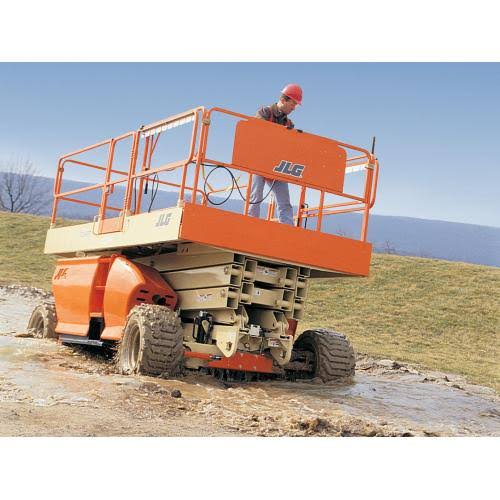

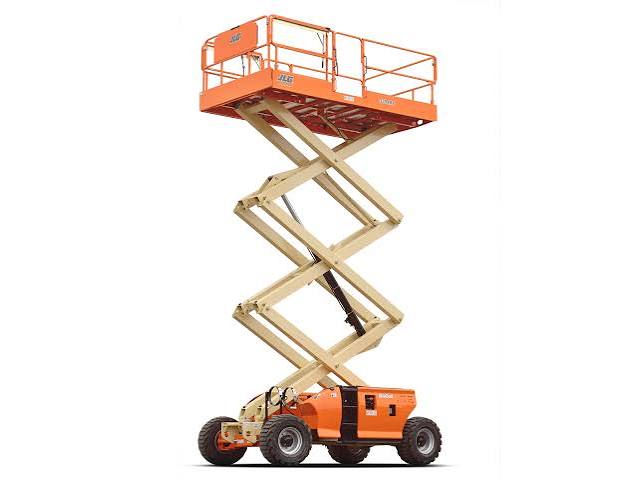

JLG 3394RT Aerial Lift
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

23 data points

Engine

Engine specifications
Engine ModelLRG-425
Gross Power82.0 hp
Fuel Typedual fuel

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase117 in
Overall Length13 in
Overall Width95 in
Turning Radius234 in
Height w/o Rails78 in

Performance

Performance specifications
Operating Weight11,909 lb
Max Speed4.0 mph
Tire Size33x15.5-16.5
Hydraulic System Fluid Capacity40.0 gal
Tire Fill/TypeSuperwide Tires
Fuel Capacity30.1 gal

Platform

Platform specifications
Max Platform Height397 in
Max Platform Weight Capacity2,249 lb
Platform Inner Length150 in
Platform Inner Width86 in
Lift Time30.0 s
Deck Extension48 in
Lower Time30.0 s
Height of Rails44 in
