JLG

340AJ

Aerial Lift

Overall Length
219 in
Overall Width
77 in
All aerial lifts

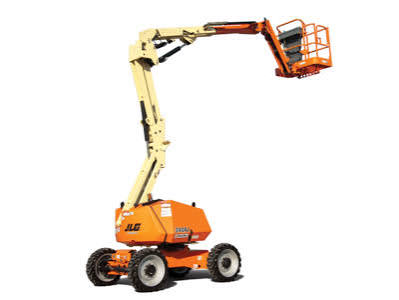

JLG 340AJ Aerial Lift
1 / 5
Image 1 of 5
Image: papemh.com

Specifications

27 data points

Engine

Engine specifications
System Voltage12 V
Maximum Ground Bearing Pressure151 psi
Diesel Engine TypeKubota D1105 24.8
Dual Fuel Engine TypePSI/GM
Dual Fuel Engine Power28.7 hp
Diesel Engine Power24.8 hp

Dimensions

Dimensions specifications
Ground Clearance10 in
Overall Length219 in
Overall Width77 in
Turning Radius60 in
Overall Height - mast lowered80 in
Platform Dimension B60 in
Platform Dimension A31 in
Tailswing Radius2 in
Up and Over Height204 in
Horizontal Outreach230 in

Performance

Performance specifications
Operating Weight9,700 lb
Tire Size265/50020 Lug Tread
Hydraulic System Fluid Capacity20.6 gal
Fuel Capacity13.0 gal
Gradeability45.0 %
Drive Speed3.2 mph
Axle Oscillation6 in

Swing System

Swing System specifications
Swing355 °
Swing TypeNon-Continuous

Platform

Platform specifications
Platform Capacity - Unrestricted500 lb
Platform Railing Height397 in
