JLG
Holland Lift
Q135EL24
Aerial Lift
19 specifications
1 / 5

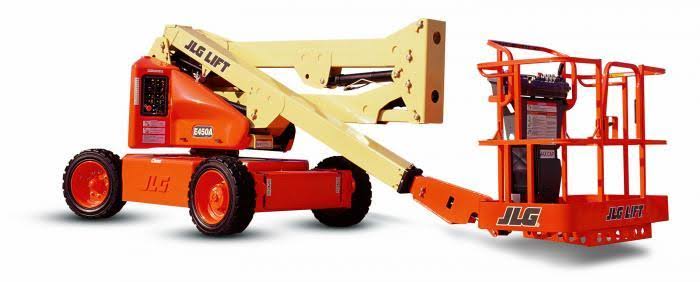

Image 1 of 5
Specifications
27 data points
Engine
| System Voltage | 48 V |
|---|---|
| Battery Amp Hours | 370 |
| Number of Batteries | 8 |
Dimensions
| Ground Clearance | 9 in |
|---|---|
| Wheelbase | 80 in |
| Overall Length | 19 in |
| Overall Width | 71 in |
| Turning Radius | 125 in |
| Overall Height - mast lowered | 79 in |
| Platform Dimension B | 60 in |
| Platform Dimension A | 31 in |
Performance
| Operating Weight | 12,599 lb |
|---|---|
| Max Speed | 3.3 mph |
| Tire Size | 240/55-17.5 |
| Tire Fill/Type | pneumatic |
| Gradeability | 30.0 % |
| Drive Speed | 3.2 mph |
| Platform Capacity | 500 lb |
| Swing | 360 ° |
Platform
| Max Platform Height | 540 in |
|---|---|
| Max Platform Weight Capacity | 500 lb |
| Platform Inner Length | 60 in |
| Platform Inner Width | 30 in |
| Max Working Height | 296 in |
| Max Horizontal Reach | 276 in |
| Platform Rotation | 180 ° |
| Platform Capacity - Unrestricted | 500 lb |
