John Deere
110
- Operating Weight
- 27,100 lb
- Max Digging Depth
- 196 in
- Max Digging Depth
- 217 in
- Net Power
- 80.0 hp
1 / 5

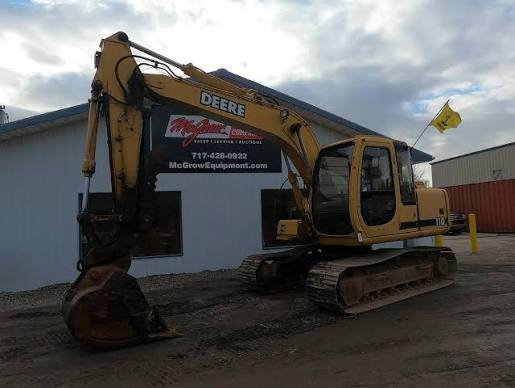

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 27,100 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 26.0 gal/min |
| Hydraulic System Fluid Capacity | 35.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 4045 T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 80.0 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 244 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 103 in |
| Tail Swing Radius | 83 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 6 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 41 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 19,400 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 196 in |
|---|---|
| Max Reach Along Ground | 294 in |
| Max Loading Height | 229 in |
| Max Vertical Wall Digging Depth | 178 in |
| Max Cutting Height | 315 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.10 yd³ |
| Minimum Bucket Capacity | 0.41 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 217 in |
|---|---|
| Max Vertical Wall Digging Depth | 198 in |
| Max Cutting Height | 324 in |
| Max Loading Height | 240 in |
| Max Reach Along Ground | 311 in |
| Shipping Length of Unit | 318 in |
| Shipping Height of Unit | 108 in |
