John Deere
Hitachi
EX135USR
Excavator
23 specifications
John Deere
120
- Operating Weight
- 26,790 lb
- Max Digging Depth
- 215 in
- Max Digging Depth
- 234 in
- Net Power
- 90.0 hp
1 / 5

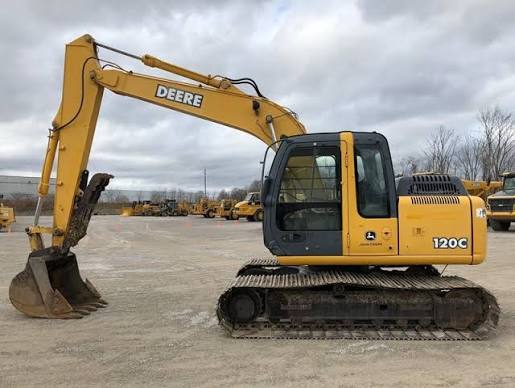

Image 1 of 5
Specifications
52 data points
Operating Specifications
| Operating Weight | 26,790 lb |
|---|---|
| Fuel Capacity | 66.0 gal |
| Hydraulic Pump Flow Capacity | 26.7 gal/min |
| Hydraulic System Fluid Capacity | 35.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.8 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | Cat 7.1 |
|---|---|
| Displacement | 428 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 90.0 hp |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 260 lb-ft |
| Bore | 4 in |
| Stroke | 5 in |
| Emissions | U.S. EPA Tier 4 Final/EU Stage IV - U.S. EPA Tier 3/EU Stage IIIA |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 83 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 22,050 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 215 in |
|---|---|
| Max Reach Along Ground | 317 in |
| Max Loading Height | 247 in |
| Max Vertical Wall Digging Depth | 192 in |
| Max Cutting Height | 332 in |
| Shipping Length of Unit | 299 in |
| Shipping Height of Unit | 106 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|
Service Refill Capacities
| Cooling System | 14.0 gal |
|---|---|
| Fuel Tank | 65.0 gal |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 234 in |
|---|---|
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 346 in |
| Max Loading Height | 260 in |
| Max Reach Along Ground | 325 in |
| Shipping Length of Unit | 300 in |
| Shipping Height of Unit | 106 in |
