John Deere
Liugong
936E
Excavator
Specifications pending
1 / 5

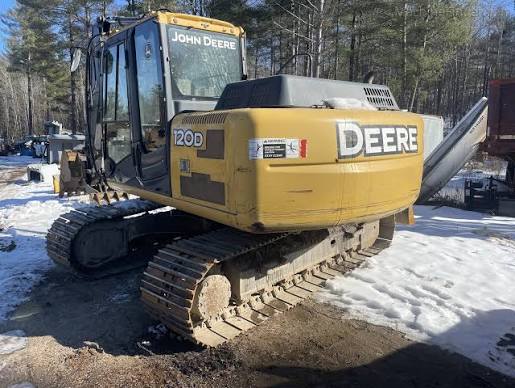

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Fuel Capacity | 66.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 55.5 gal/min |
| Hydraulic System Fluid Capacity | 35.1 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.7 gal |
| Cooling System Fluid Capacity | 5.3 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | 4045H tier III certified |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,000 rpm |
| Net Power | 93.0 hp |
| Aspiration | Turbocharged air-to-air charge air cooler |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 84 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 36 in |
| Digging Depth | 239 in |
| Digging Reach | 346 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 78 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 24,729 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 220 in |
|---|---|
| Max Reach Along Ground | 324 in |
| Max Loading Height | 244 in |
| Max Vertical Wall Digging Depth | 198 in |
| Max Cutting Height | 339 in |
| Shipping Length of Unit | 302 in |
| Shipping Height of Unit | 108 in |
Bucket
| Reference Bucket Capacity | 0.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.10 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 217 in |
| Max Cutting Height | 350 in |
| Max Loading Height | 256 in |
| Max Reach Along Ground | 342 in |
| Shipping Length of Unit | 302 in |
| Shipping Height of Unit | 108 in |
