John Deere
Liugong
936E
Excavator
Specifications pending
1 / 5

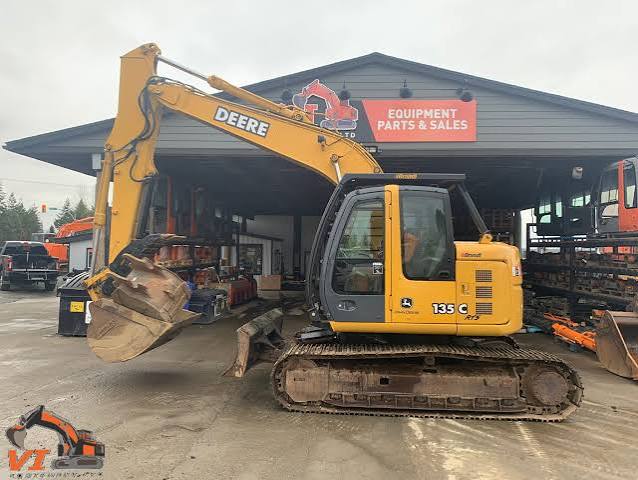

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Fuel Capacity | 53.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 55.5 gal/min |
| Hydraulic System Fluid Capacity | 31.8 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.5 gal |
| Cooling System Fluid Capacity | 3.8 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | CC-4BG1TC |
|---|---|
| Displacement | 264 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 88.0 hp |
| Aspiration | Turbocharged and air-to-air charge air cooler |
| Torque Measured @ | 1,600 rpm |
| Max Torque | 253 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 108 in |
| Length of Track on Ground | 114 in |
| Tail Swing Radius | 59 in |
| Width to Outside of Tracks | 107 in |
| Removal Counterweight Clearance | 36 in |
| Digging Depth | 216 in |
| Digging Reach | 216 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 28 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 1 |
| Drawbar Pull | 26,300 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 219 in |
|---|---|
| Max Reach Along Ground | 322 in |
| Max Loading Height | 267 in |
| Max Vertical Wall Digging Depth | 197 in |
| Max Cutting Height | 364 in |
| Shipping Length of Unit | 288 in |
| Shipping Height of Unit | 113 in |
Bucket
| Reference Bucket Capacity | 0.90 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.50 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 238 in |
|---|---|
| Max Vertical Wall Digging Depth | 216 in |
| Max Cutting Height | 379 in |
| Max Loading Height | 282 in |
| Max Reach Along Ground | 341 in |
| Shipping Length of Unit | 288 in |
| Shipping Height of Unit | 113 in |
