John Deere
Liugong
936E
Excavator
Specifications pending
1 / 5

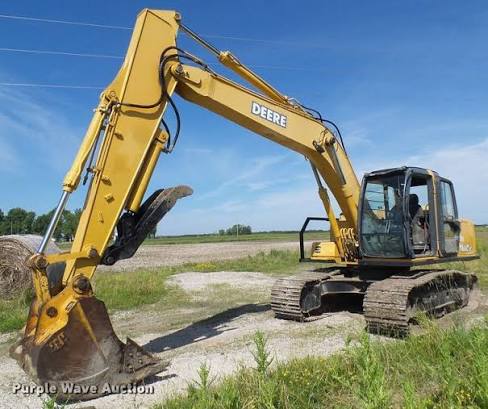

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Fuel Capacity | 74.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 78.2 gal/min |
| Hydraulic System Fluid Capacity | 44.9 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 3.7 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.2 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 4045H |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,300 rpm |
| Net Power | 109.0 hp |
| Aspiration | Turbocharger and air-to-air charge air cooler |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 302 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 114 in |
| Length of Track on Ground | 122 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 40 in |
| Digging Depth | 228 in |
| Digging Reach | 228 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 43 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 33,670 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 230 in |
|---|---|
| Max Reach Along Ground | 339 in |
| Max Loading Height | 248 in |
| Max Vertical Wall Digging Depth | 198 in |
| Max Cutting Height | 344 in |
| Shipping Length of Unit | 336 in |
| Shipping Height of Unit | 114 in |
Bucket
| Reference Bucket Capacity | 1.10 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.80 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 251 in |
|---|---|
| Max Vertical Wall Digging Depth | 220 in |
| Max Cutting Height | 354 in |
| Max Loading Height | 258 in |
| Max Reach Along Ground | 356 in |
| Shipping Length of Unit | 337 in |
| Shipping Height of Unit | 114 in |
