John Deere
Madill
H2200B
Processor
16 specifications
1 / 5

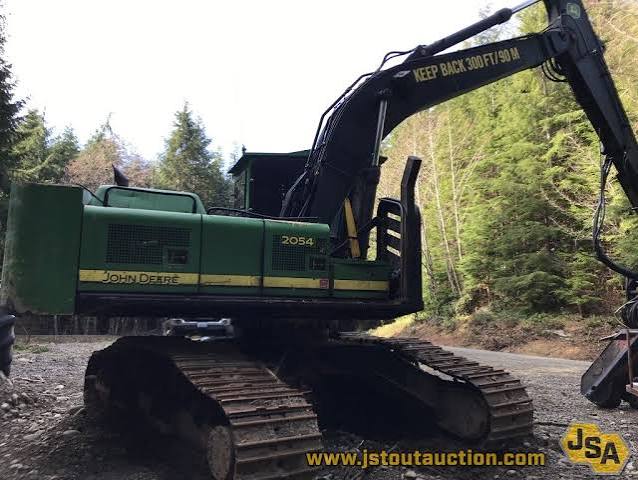

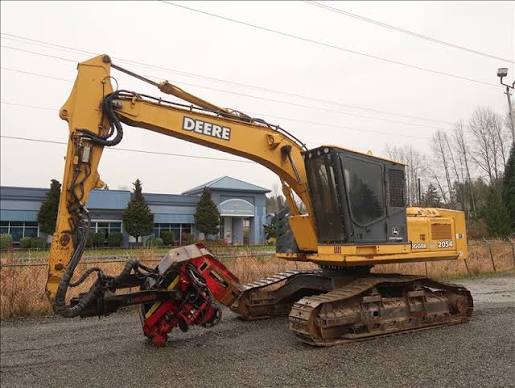

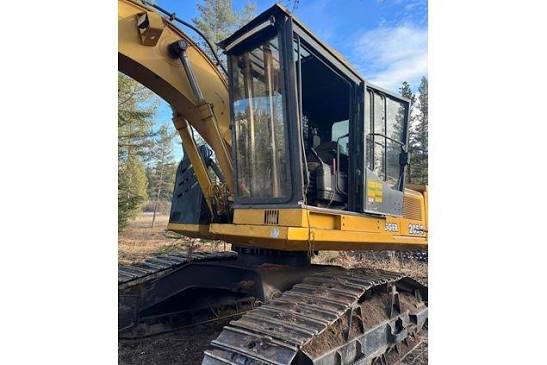

Image 1 of 5
Specifications
40 data points
Operating Specifications
| Operating Weight | 69,188 lb |
|---|---|
| Fuel Capacity | 269.0 gal |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 45 A |
| Hydraulic System Fluid Capacity | 34.0 gal |
| Cooling System Fluid Capacity | 6.3 gal |
| Engine Oil Capacity | 5.1 gal |
Engine
| Engine Model | 6068T |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 140.9 hp |
| Number of Cylinders | 6 |
| Net Torque | 427 lb-ft |
Hydraulic System
| Pump Flow Capacity | 115.8 gal/min |
|---|---|
| Pump Type | variable axial-piston |
| Relief Valve Pressure | 4,980 psi |
Dimensions
| Ground Clearance | 29 in |
|---|---|
| Height - Top of Cab | 186 in |
| Overall Width | 144 in |
| Tail Swing Radius | 119 in |
Undercarriage
| Track Gauge | 115 in |
|---|---|
| Shoe Size | 28 in |
| Max Speed | 3.5 mph |
| Max Drawbar Pull | 44,421 lb |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|---|
| Swing Torque | 41,923 lb-ft |
Boom/Stick Log Loader Option 1
| Max Lift Capacity Over Front at Ground Level | 21,101 lb |
|---|---|
| Max Height | 496 in |
| Max Reach at Ground Level | 432 in |
| Shipping Length | 541 in |
| Boom/Stick Option (LGL) 1 | live-heel |
| Max Depth Below Ground | 256 in |
| Shipping Height | 131 in |
Boom/Stick Log Loader Option 2
| Max Lift Capacity Over Front at Ground Level | 21,385 lb |
|---|---|
| Boom/Stick Option (LGL) 2 | articulating grapple |
| Max Depth Below Ground | 231 in |
| Max Height | 472 in |
| Max Reach at Ground Level | 408 in |
| Shipping Height | 131 in |
| Shipping Length | 554 in |

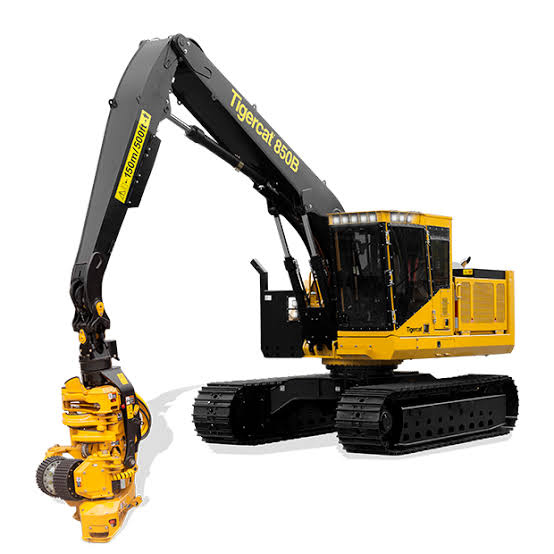

Comparable machines
