John Deere
230 LC
- Operating Weight
- 52,410 lb
- Max Digging Depth
- 245 in
- Max Digging Depth
- 270 in
- Net Power
- 170.0 hp
1 / 5

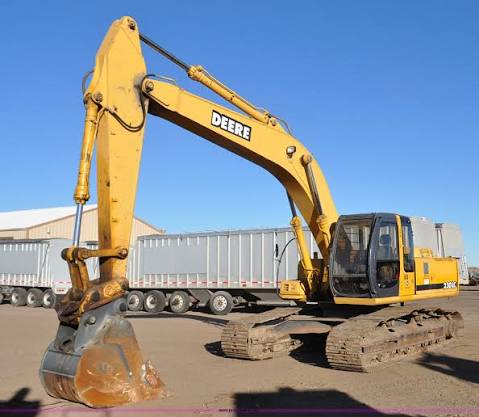

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 52,410 lb |
|---|---|
| Fuel Capacity | 82.0 gal |
| Hydraulic Pump Flow Capacity | 54.0 gal/min |
| Hydraulic System Fluid Capacity | 71.0 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 5.0 gal |
| Cooling System Fluid Capacity | 5.9 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,100 rpm |
| Net Power | 170.0 hp |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 528 lb-ft |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 151 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 126 in |
| Removal Counterweight Clearance | 43 in |
Undercarriage
| Ground Pressure | 7 psi |
|---|---|
| Track Gauge | 102 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 42,420 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 245 in |
|---|---|
| Max Reach Along Ground | 175 in |
| Max Loading Height | 258 in |
| Max Vertical Wall Digging Depth | 233 in |
| Max Cutting Height | 371 in |
| Shipping Length of Unit | 404 in |
| Shipping Height of Unit | 130 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 270 in |
|---|---|
| Max Vertical Wall Digging Depth | 234 in |
| Max Cutting Height | 379 in |
| Max Loading Height | 267 in |
| Max Reach Along Ground | 394 in |
| Shipping Length of Unit | 400 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 294 in |
|---|---|
| Max Cutting Height | 394 in |
| Max Loading Height | 281 in |
| Max Vertical Wall Digging Depth | 261 in |
| Max Reach Along Ground | 419 in |
| Shipping Length of Unit | 402 in |
| Shipping Height of Unit | 131 in |
