John Deere

250 Series II

Skid Steer Loader

Operating Weight
6,250 lb
Max Speed
6.8 mph
All skid steer loaders

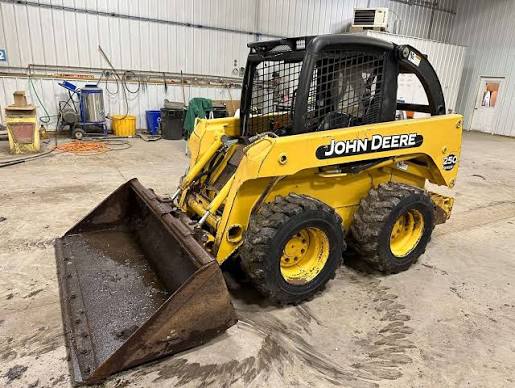

John Deere 250 Series II Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,250 lb
Max Speed6.8 mph
Fuel Capacity15.0 gal
Operating Voltage12 V
Operating Speed6.8 mph

Engine

Engine specifications
Engine Model3029T
Displacement179 in³
Power Measured @2,400 rpm
Number of Cylinders3

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min
Relief Valve Pressure3,100 psi
Pump TypeHydrostatic

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab77 in
Wheelbase43 in
Width Over Tires71 in
Reach at Max Lift and Dump28 in
Length with Bucket126 in
Length w/o Bucket103 in

Loader

Loader specifications
Operating Load Rating1,750 lb
Tipping Angle3,600 °
Breakout Force5,500 psi
