John Deere

260 Series II

Skid Steer Loader

Operating Weight
8,250 lb
Max Speed
12.0 mph
All skid steer loaders

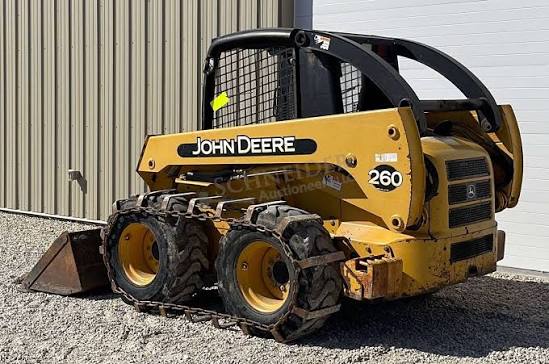

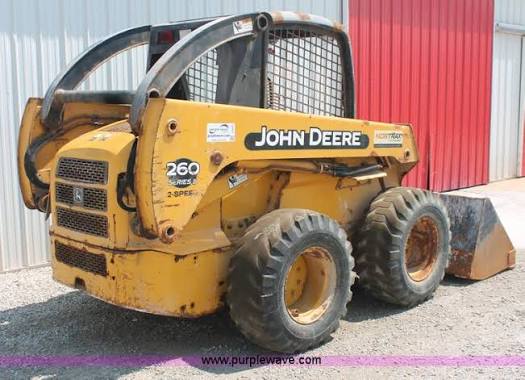

John Deere 260 Series II Skid Steer Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,250 lb
Max Speed12.0 mph
Fuel Capacity20.0 gal
Tire Size14x17.5 SKS
Operating Speed7.0 mph

Engine

Engine specifications
Engine Model3029T
Displacement179 in³
Power Measured @2,400 rpm
Number of Cylinders3

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity21.3 gal/min
Relief Valve Pressure3,100 psi
Pump TypeHydrostatic

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab84 in
Wheelbase48 in
Width Over Tires77 in
Reach at Max Lift and Dump32 in
Length with Bucket138 in
Length w/o Bucket115 in

Loader

Loader specifications
Operating Load Rating2,400 lb
Tipping Angle5,000 °
Breakout Force7,500 psi
