John Deere

270 LC

Excavator

Operating Weight
52,410 lb
Max Digging Depth
285 in
Max Digging Depth
311 in
Net Power
180.0 hp
All excavators

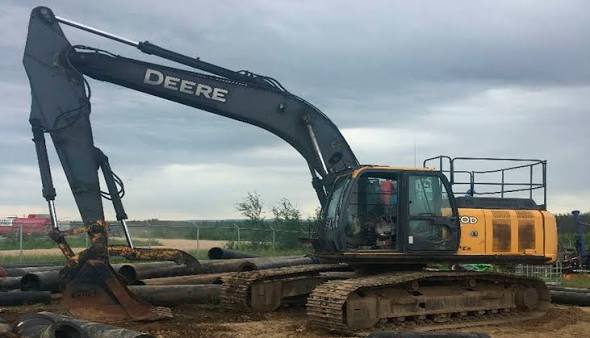

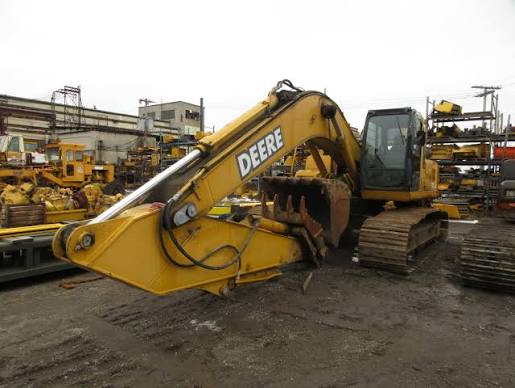

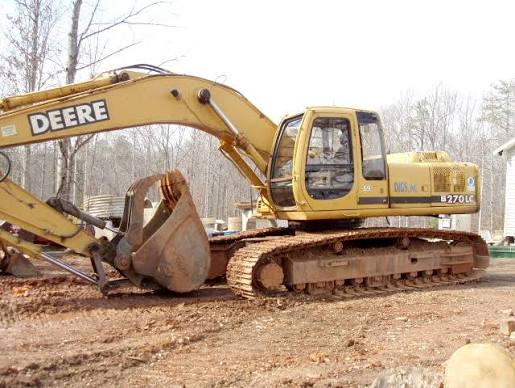

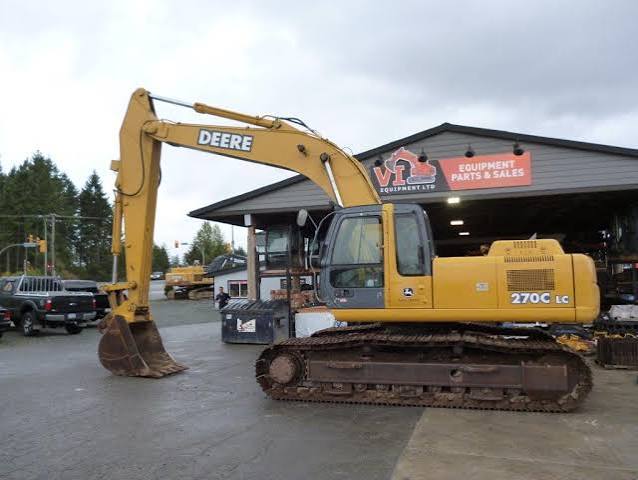

John Deere 270 LC Excavator
1 / 5
Image 1 of 5
Image: global-ce.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight52,410 lb
Fuel Capacity82.0 gal
Hydraulic Pump Flow Capacity55.0 gal/min
Hydraulic System Fluid Capacity71.0 gal
Hydraulic System Relief Valve Pressure1,980 psi
Engine Oil Capacity5.1 gal
Cooling System Fluid Capacity5.9 gal
Operating Voltage24 V
Swing Drive Fluid Capacity3.5 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6068H
Displacement414 in³
Power Measured @2,150 rpm
Net Power180.0 hp
AspirationTurbocharger
Torque Measured @1,400 rpm
Max Torque400 lb-ft

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab120 in
Length of Track on Ground158 in
Tail Swing Radius117 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance47 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge102 in
Number of Track Rollers per Side9
Max Travel Speed3.2 mph
Shoe Size32 in
Number of Shoes per Side50
Number of Carrier Rollers per Side2
Drawbar Pull50,510 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth285 in
Max Reach Along Ground414 in
Max Loading Height278 in
Max Vertical Wall Digging Depth241 in
Max Cutting Height394 in
Shipping Length of Unit406 in
Shipping Height of Unit126 in

Bucket

Bucket specifications
Reference Bucket Capacity1.80 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth311 in
Max Vertical Wall Digging Depth268 in
Max Cutting Height403 in
Max Loading Height289 in
Max Reach Along Ground438 in
Shipping Length of Unit407 in
Shipping Height of Unit132 in
