John Deere
Liugong
936E
Excavator
Specifications pending
1 / 5

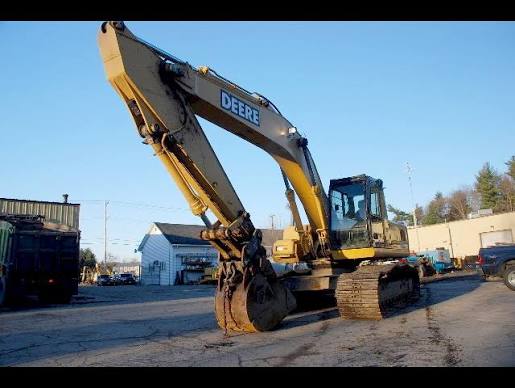

Image 1 of 5
Specifications
49 data points
Operating Specifications
| Fuel Capacity | 100.0 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 55.0 gal/min |
| Hydraulic System Fluid Capacity | 66.1 gal |
| Hydraulic System Relief Valve Pressure | 1,980 psi |
| Engine Oil Capacity | 5.1 gal |
| Cooling System Fluid Capacity | 6.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.1 gal |
| Alternator Supplied Amperage | 45 A |
Engine
| Engine Model | 6068H |
|---|---|
| Displacement | 414 in³ |
| Power Measured @ | 2,150 rpm |
| Net Power | 177.1 hp |
| Aspiration | Turbocharger and Air-to-Air |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 541 lb-ft |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 117 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 47 in |
| Digging Depth | 276 in |
| Digging Reach | 276 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.0 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 56,074 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 287 in |
|---|---|
| Max Reach Along Ground | 417 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 241 in |
| Max Cutting Height | 395 in |
| Shipping Length of Unit | 406 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.80 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.11 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 312 in |
|---|---|
| Max Vertical Wall Digging Depth | 263 in |
| Max Cutting Height | 401 in |
| Max Loading Height | 285 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 408 in |
| Shipping Height of Unit | 132 in |
