John Deere

280 Series II

Skid Steer Loader

Operating Weight
9,200 lb
Max Speed
12.0 mph
All skid steer loaders

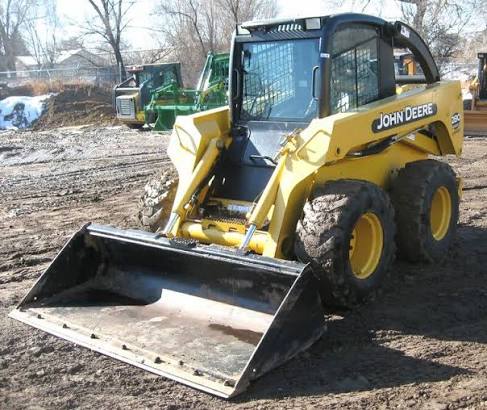

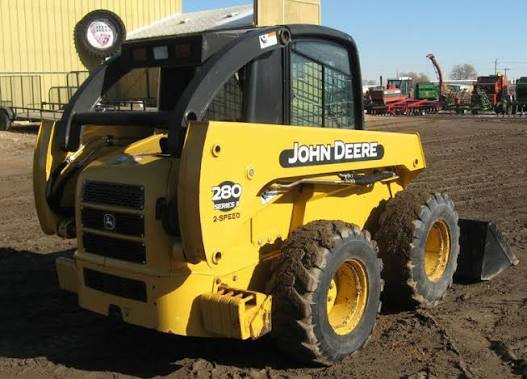

John Deere 280 Series II Skid Steer Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,200 lb
Max Speed12.0 mph
Fuel Capacity24.0 gal
Tire Size14x17.5
Operating Speed7.0 mph

Engine

Engine specifications
Engine Model4045T
Displacement276 in³
Power Measured @2,400 rpm
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity28.0 gal/min
Relief Valve Pressure3,100 psi
Pump TypeHydrostatic

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab84 in
Wheelbase49 in
Width Over Tires78 in
Reach at Max Lift and Dump32 in
Length with Bucket138 in
Length w/o Bucket115 in

Loader

Loader specifications
Operating Load Rating3,200 lb
Tipping Angle7,000 °
Breakout Force11,600 psi
