John Deere
Liugong
936E
Excavator
Specifications pending
1 / 5

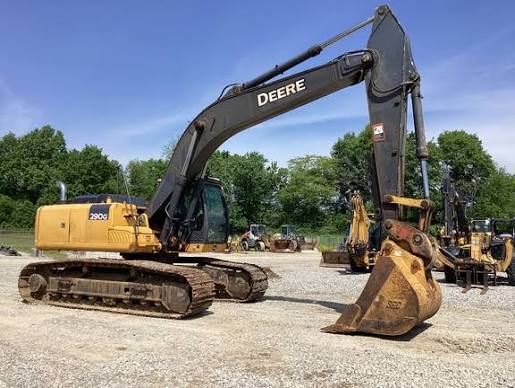

Image 1 of 5
Specifications
42 data points
Operating Specifications
| Fuel Capacity | 132.1 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 9.0 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 566 psi |
| Engine Oil Capacity | 6.5 gal |
| Cooling System Fluid Capacity | 7.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 100 A |
Engine
| Engine Model | PowerTechâ„¢ PVX 6.8 L |
|---|---|
| Displacement | 415 in³ |
| Power Measured @ | 2,100 rpm |
| Aspiration | Turbocharged |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 124 in |
| Length of Track on Ground | 159 in |
| Tail Swing Radius | 125 in |
| Width to Outside of Tracks | 134 in |
| Removal Counterweight Clearance | 47 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 32 in |
| Number of Shoes per Side | 48 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 55,336 lb |
Boom/Stick Excavator Option 1
| Max Loading Height | 288 in |
|---|---|
| Max Vertical Wall Digging Depth | 256 in |
| Max Cutting Height | 404 in |
| Shipping Length of Unit | 415 in |
| Shipping Height of Unit | 126 in |
Bucket
| Reference Bucket Capacity | 1.40 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.11 yd³ |
| Minimum Bucket Capacity | 0.99 yd³ |
Swing Mechanism
| Swing Speed | 13 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 311 in |
|---|---|
| Max Vertical Wall Digging Depth | 278 in |
| Max Cutting Height | 413 in |
| Max Loading Height | 296 in |
| Max Reach Along Ground | 438 in |
| Shipping Length of Unit | 418 in |
| Shipping Height of Unit | 131 in |
