John Deere

310C

Backhoe Loader

Bucket Capacity
0.99 yd³
Max Speed
22.4 mph
Gross Power
75.0 hp
All backhoe loaders

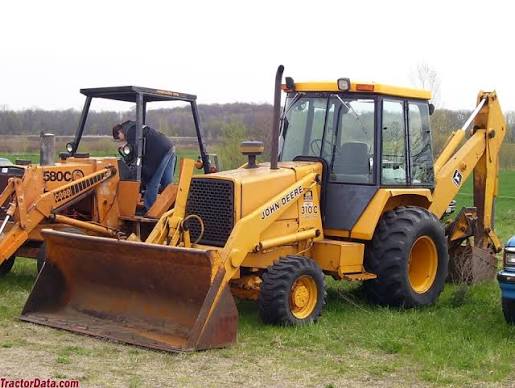

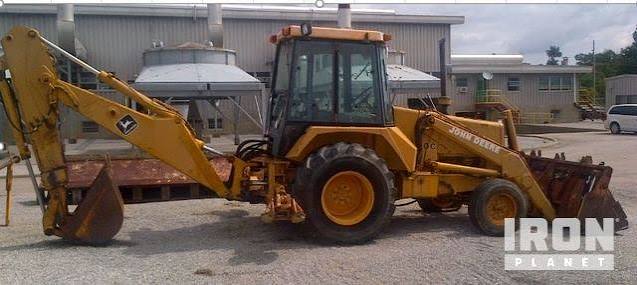

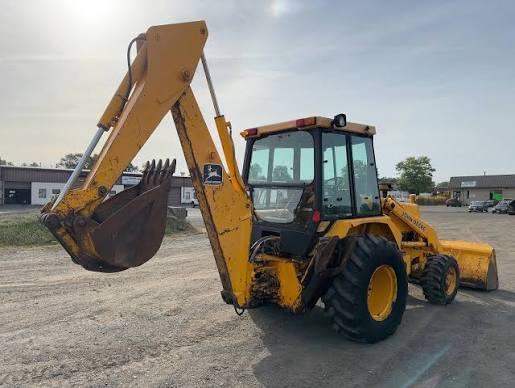

John Deere 310C Backhoe Loader
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity23.0 gal
Hydraulic System Fluid Capacity21.0 gal
Cooling System Fluid Capacity3.5 gal
Operating Voltage12 V
Oil System Fluid Capacity2.3 gal
Alternator Supplied Amperage65 A
Max Weight12,400 lb

Engine

Engine specifications
Displacement275 in³
Power Measured @2,200 rpm
Gross Power75.0 hp
Number of Cylinders4
Torque Measured @1,300 rpm
Engine MakeJohn Deere
Stroke5 in
Bore4 in
Net Max Torque222 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity35.0 gal/min
Relief Valve Pressure2,755 psi
Pump TypeOpen center

Dimensions

Dimensions specifications
Transport Width83 in
Transport Length281 in

Transmission

Transmission specifications
Max Speed22.4 mph
Max Speed - Reverse20.2 mph
Number of Forward Gears4
Number of Reverse Gears4

Backhoe

Backhoe specifications
Dig Depth172 in
Reach From Swivel210 in
Dig Depth - Extended210 in
Load Height - Extended157 in
Bucket Dig Force11,570 lb
Reach From Swivel - Extended253 in
Load Height131 in
Bucket Dig Force - Extended11,400 lb

Loader

Loader specifications
Bucket Capacity0.99 yd³
Clearance at Max Dump Height107 in
Bucket Breakout Force8,700 lb
Bucket Width92 in
Reach at Max Dump Height29 in
