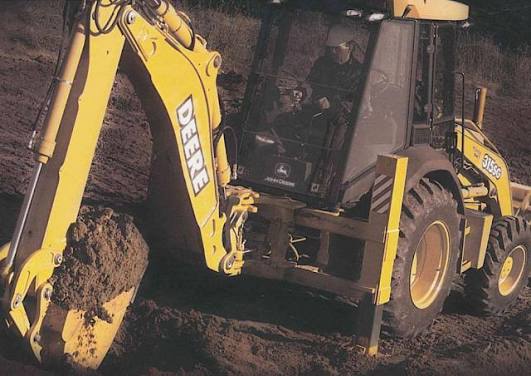

John DeereJohn Deere
315SE
Backhoe Loader
57 specifications
1 / 5
Image 1 of 5
Specifications
51 data points
Operating Specifications
| Operating Weight 4wd | 430 lb |
|---|---|
| Operating Weight 2wd | 220 lb |
| Fuel Capacity | 28.0 gal |
| Hydraulic System Fluid Capacity | 21.0 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 11L-1612PR F3/10.5/-188PRTG2 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 78 A |
| Turning Radius | 142 in |
| Transmission Fluid Capacity | 1.9 gal |
| Max Weight | 14,000 lb |
| Front Axle Fluid Capacity | 6.0 gal |
Engine
| Engine Model | 4039D |
|---|---|
| Displacement | 239 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 74.0 hp |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Net Max Torque | 215 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 35.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,700 psi |
| Pump Type | Gear open center |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 89 in |
| Transport Length | 222 in |
| Height to Top of Suspended Cab | 108 in |
Transmission
| Max Speed | 25.3 mph |
|---|---|
| Max Speed - Reverse | 22.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed helical gear synchronized in all four gears collar shift with hydraulic reverser |
Tires & Wheels
| Rear Tires Size | 16.9-288PR R4 |
|---|
Backhoe
| Dig Depth | 169 in |
|---|---|
| Reach From Swivel | 214 in |
| Dig Depth - Extended | 174 in |
| Load Height - Extended | 174 in |
| Bucket Dig Force | 11,570 lb |
| Reach From Swivel - Extended | 257 in |
| Reach at Load Height - Extended | 305 in |
| Bucket Dig Force - Extended | 11,530 lb |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Clearance at Max Dump Height | 132 in |
| Bucket Breakout Force | 9,350 lb |
| Bucket Width | 92 in |
| Reach at Max Dump Height | 29 in |
| Dig Depth | 4 in |
