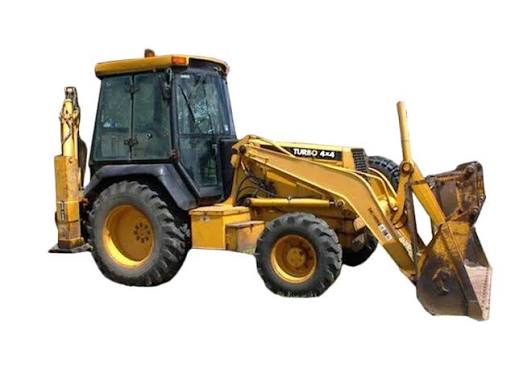

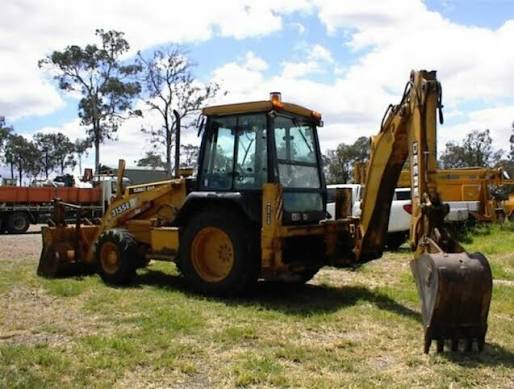

John DeereJohn Deere
315D
Backhoe Loader
51 specifications
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight 4wd | 580 lb |
|---|---|
| Fuel Capacity | 36.0 gal |
| Hydraulic System Fluid Capacity | 24.0 gal |
| Cooling System Fluid Capacity | 4.3 gal |
| Tire Size Front - 2wd / 4wd | 11L-158PR F3/12.5/80-1810PR |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.3 gal |
| Alternator Supplied Amperage | 65 A |
| Turning Radius | 142 in |
| Transmission Fluid Capacity | 3.7 gal |
| Max Weight | 14,700 lb |
| Rear Axle Fluid Capacity | 3.5 gal |
| Front Axle Fluid Capacity | 2.3 gal |
Engine
| Engine Model | 4045T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 88.0 hp |
| Net Power | 80.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Net Max Torque | 271 lb-ft |
| Net Torque Rise | 0 |
Hydraulic System
| Pump Flow Capacity | 36.0 gal/min |
|---|---|
| Relief Valve Pressure | 3,625 psi |
| Pump Type | Gear open center |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 83 in |
| Transport Width | 93 in |
| Transport Length | 207 in |
| Height to Top of Suspended Cab | 108 in |
Transmission
| Max Speed | 25.8 mph |
|---|---|
| Max Speed - Reverse | 28.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | 4-speed helical cut gear collar shift transmission synchronized in all gears with hydraulic reverser |
Tires & Wheels
| Rear Tires Size | 16.9-248PR R4/19.5L-248PRR4 |
|---|
General Specifications
| Operating Weight lbs (kg) | 14,700 (6,670) — Starting 2004 Model Year |
|---|---|
| Lift Capacity lbs (kgs) | 6,150 (2,790) — Starting 2004 Model Year |
| Loading Height ft (m) | 11.7 (3.56) — Starting 2004 Model Year |
| 4th Gear Fwd mph (kmh) | 25.8 (41.5) — Starting 2004 Model Year |
| Breakout Force lbs (kgs) | 8,900 (4,037) — Starting 2004 Model Year |
| Digging Depth ft (m) | 14 (4.3) — Starting 2004 Model Year |
| SAE Net hp (kW) | 80 (60) — Starting 2004 Model Year |
Backhoe
| Dig Depth | 169 in |
|---|---|
| Reach From Swivel | 217 in |
| Dig Depth - Extended | 216 in |
| Load Height - Extended | 172 in |
| Bucket Dig Force | 11,990 lb |
| Reach From Swivel - Extended | 261 in |
| Reach at Load Height - Extended | 317 in |
| Bucket Dig Force - Extended | 12,158 lb |
Loader
| Bucket Capacity | 1.29 yd³ |
|---|---|
| Clearance at Max Dump Height | 104 in |
| Bucket Breakout Force | 8,900 lb |
| Bucket Width | 92 in |
| Reach at Max Dump Height | 31 in |
| Dig Depth | 8 in |
