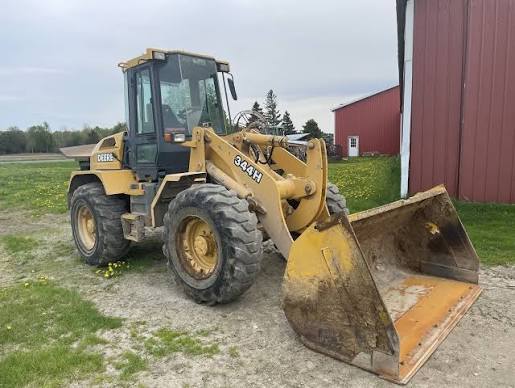

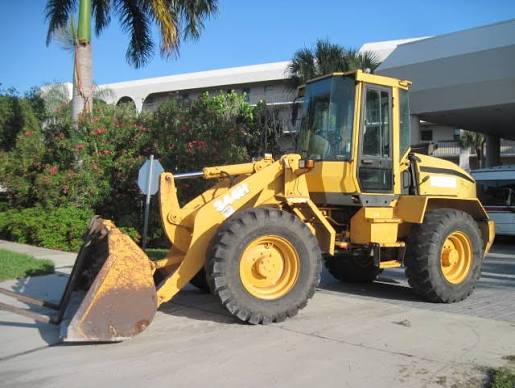

John Deere
344H
- Operating Weight
- 16,876 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Gross Power
- 102.0 hp
- Net Power
- 98.0 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 16,876 lb |
|---|---|
| Fuel Capacity | 37.0 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Static Tipping Weight | 12,039 lb |
| Operating Voltage | 12 V |
| Turning Radius | 154 in |
| Engine Oil Fluid Capacity | 3.2 gal |
| Rear Axle Oscillation | 24 ° |
| Alternator Supplied Amperage | 65 A |
| Front Axle/Diff Fluid Capacity | 2.8 gal |
| Rear Axle/Diff Fluid Capacity | 2.8 gal |
| Cooling System Fluid Capacity | 4.5 gal |
Engine
| Engine Model | 4045T |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,400 rpm |
| Gross Power | 102.0 hp |
| Net Power | 98.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 30.0 gal/min |
|---|---|
| Raise Time | 4.4 s |
| Lower Time | 3.0 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | gear |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 121 in |
| Wheelbase | 103 in |
| Width Over Tires | 93 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 248 in |
| Hinge Pin - Max Height | 144 in |
Transmission
| Max Speed - Forward | 18.0 mph |
|---|---|
| Max Speed - Reverse | 18.0 mph |
| Transmission Type | hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.60 yd³ |
| Dump Clearance at Max Raise | 109 in |
| Breakout Force | 17,529 lb |
| Bucket Width | 95 in |
