WA100M-5
Wheel Loader
38 specifications
1 / 5

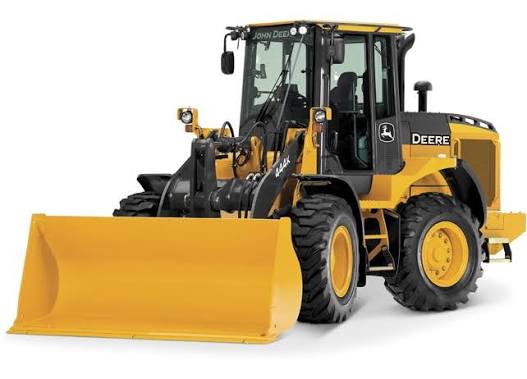

Image 1 of 5
Specifications
48 data points
Operating Specifications
| Operating Weight | 25,023 lb |
|---|---|
| Fuel Capacity | 58.2 gal |
| Front Axle/Diff Fluid Capacity | 5.9 gal |
| Rear Axle/Diff Fluid Capacity | 5.9 gal |
| Rated Bucket Capacity | 2.00 yd³ |
Engine
| Engine Model | PowerTech PSS 4045 |
|---|---|
| Displacement | 275 in³ |
| Net Power | 124.0 hp |
| Engine Make | John Deere |
| Make | Deere PowerTech |
| Torque Rise | 34.0 % |
| Torque | 374 lb-ft |
| Alternator | 100 A |
| System Voltage | 24 V |
| Rated Speed | 2,100 rpm |
| Transmission Type | Powershift |
| Emission level | Tier 4 |
| Pump | Piston |
| Engine Output-Net | 123.4 hp |
Weights
| Operating Weight | 24,698 lb |
|---|
Dimensions
| Height - Top of Cab | 126 in |
|---|---|
| Wheelbase | 109 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 57 in |
| Length with Bucket on Ground | 271 in |
| Hinge Pin - Max Height | 143 in |
| Turning Circle | 459 in |
Transmission
| Pump Flow | 37.0 gal/min |
|---|---|
| System Pressure | 248 psi |
Fluid Capacities
| Hydraulic Tank | 31.4 gal |
|---|---|
| Transmission | 4.9 gal |
| Heaped Capacity | 2.50 yd³ |
Bucket
| Bucket Capacity - Smallest | 2.50 yd³ |
|---|---|
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 17,549 lb |
| Largest bucket capacity | 4.09 yd³ |
General Specifications
| Operating Weight | 25,022 (11,350) — Starting 2019 Model Year |
|---|---|
| Bucket Capacity | 2.5 - 4.0 (1.9) — Starting 2019 Model Year |
| Engine type | Deere PSS 4045 — Starting 2019 Model Year |
| Engine Power | 124 (92) — Starting 2019 Model Year |
| Max Dump Height | 8.9 (2.7) — Starting 2019 Model Year |
Driveline
| Ride control system | Optional |
|---|---|
| Parking Brake Type | Wet Multi Disc |
| Service Brake - Location | All Wheels |
| Service Brake Actuation | Hydraulic |
| Service Brake Type | Wet Multi Disc |
| Tire size - Standard | 17.5 R25 |
| Differential lock | Front- Locking Rear- Open |
