John Deere

450C LC

Excavator

Operating Weight
102,560 lb
Max Digging Depth
287 in
Max Digging Depth
306 in
Net Power
316.0 hp
All excavators

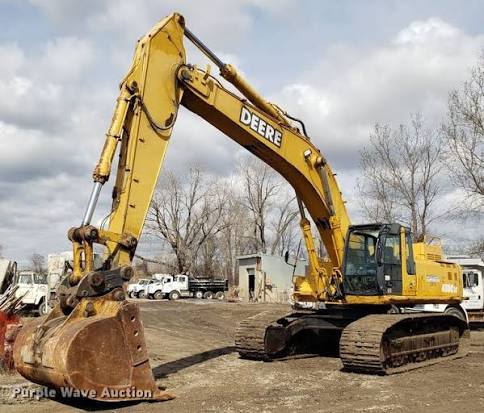

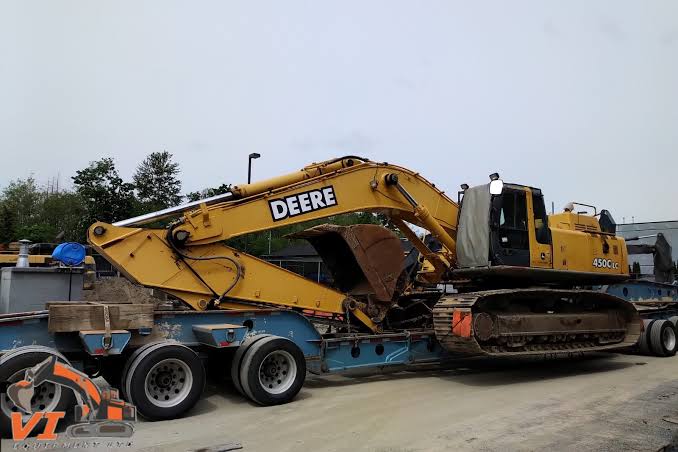

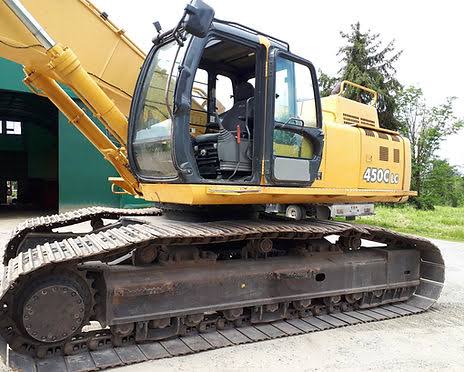

John Deere 450C LC Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

70 data points

Operating Specifications

Operating Specifications specifications
Operating Weight102,560 lb
Fuel Capacity171.0 gal
Hydraulic Pump Flow Capacity100.0 gal/min
Hydraulic System Fluid Capacity74.0 gal
Hydraulic System Relief Valve Pressure4,410 psi
Engine Oil Capacity11.1 gal
Cooling System Fluid Capacity13.3 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.8 gal
Alternator Supplied Amperage45 A

Engine

Engine specifications
Engine Model6125H
Displacement763 in³
Power Measured @1,800 rpm
Net Power316.0 hp
AspirationTurbocharger
Torque Measured @1,300 rpm
Max Torque955 lb-ft

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab130 in
Length of Track on Ground176 in
Tail Swing Radius138 in
Width to Outside of Tracks144 in
Removal Counterweight Clearance54 in
Digging Depth276 in
Digging Reach276 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge114 in
Number of Track Rollers per Side9
Max Travel Speed3.4 mph
Shoe Size30 in
Number of Shoes per Side53
Number of Carrier Rollers per Side3
Drawbar Pull79,590 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth287 in
Max Reach Along Ground439 in
Max Loading Height277 in
Max Vertical Wall Digging Depth210 in
Max Cutting Height404 in
Shipping Length of Unit469 in
Shipping Height of Unit143 in

Bucket

Bucket specifications
Reference Bucket Capacity3.10 yd³
Maximum Bucket Capacity6.61 yd³
Minimum Bucket Capacity2.11 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth306 in
Max Vertical Wall Digging Depth263 in
Max Cutting Height437 in
Max Loading Height302 in
Max Reach Along Ground466 in
Shipping Length of Unit470 in
Shipping Height of Unit138 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth325 in
Max Cutting Height441 in
Max Loading Height306 in
Max Vertical Wall Digging Depth277 in
Max Reach Along Ground483 in
Shipping Length of Unit470 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth360 in
Max Cutting Height468 in
Max Reach Along Ground520 in
Max Loading Height346 in
Max Vertical Wall Dig Depth333 in
Shipping Length of Unit462 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth246 in
Max Reach Along Ground418 in
Max Cutting Height430 in
Max Loading Height289 in
Max Vertical Wall Dig Depth202 in
Shipping Height of Unit148 in
Shipping Length of Unit410 in
