John Deere
Mitsubishi
BD2HS-HB1
Crawler Dozer
17 specifications
John Deere
450E/6415
- Operating Weight
- 14,675 lb
- Max Speed - Forward
- 6.5 mph
- Gross Power
- 73.0 hp
- Net Power
- 70.0 hp
1 / 5

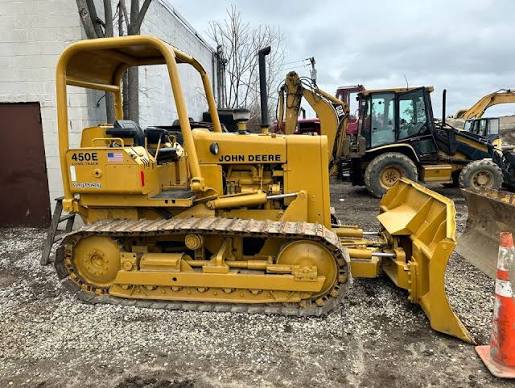

Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 14,675 lb |
|---|---|
| Fuel Capacity | 31.0 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Final Drives Fluid Capacity | 1.6 gal |
| Engine Oil Capacity | 3.8 gal |
| Hydraulic Fluid Capacity | 9.5 gal |
| Operating Voltage | 12 V |
Engine
| Engine Model | 4-276D |
|---|---|
| Displacement | 276 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 73.0 hp |
| Net Power | 70.0 hp |
| Number of Cylinders | 4 |
| Aspiration | naturally aspirated |
| Torque Measured @ | 1,200 rpm |
| Max Torque | 228 lb-ft |
Hydraulic System
| Pump Flow Capacity | 23.0 gal/min |
|---|---|
| Relief Valve Pressure | 2,250 psi |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 6 in |
|---|---|
| Height - Top of Cab | 102 in |
| Length of Track on Ground | 73 in |
| Length w/o Blade | 143 in |
Transmission
| Max Speed - Forward | 6.5 mph |
|---|---|
| Max Speed - Reverse | 6.2 mph |
| Transmission Type | H-L-4: 4 speed ranges with high low and reverse speeds shifted hydraulically without clutching in each range |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Number of Track Rollers per Side | 1 |
| Number of Shoes per Side | 36 |
| Standard Shoe Size | 18 in |
| Ground Contact Area | 2,619 in³ |
| Track Pitch | 12 in |
Standard Blade
| Width | 97 in |
|---|---|
| Height | 32 in |
| Blade Angle (both directions) | 25 ° |
