John Deere

450G LT

Crawler Dozer

Operating Weight
15,732 lb
Max Speed - Forward
5.6 mph
Gross Power
73.0 hp
Net Power
70.0 hp
All crawler dozers

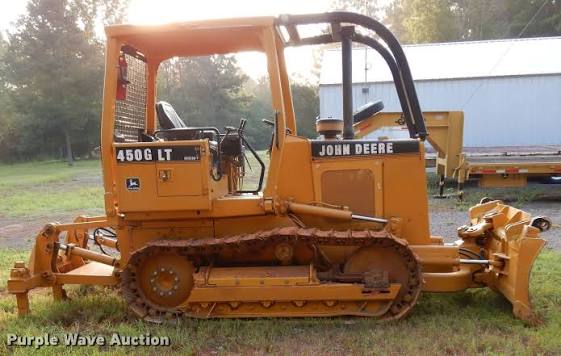

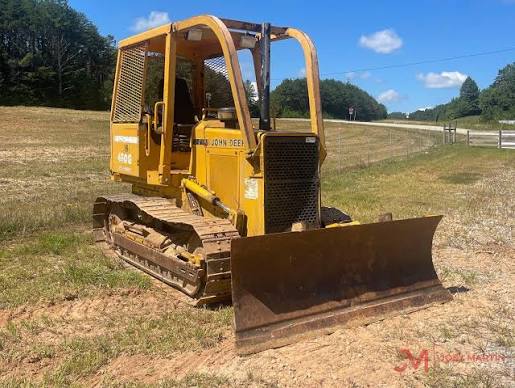

John Deere 450G LT Crawler Dozer
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,732 lb
Fuel Capacity41.0 gal
Cooling System Fluid Capacity4.5 gal
Final Drives Fluid Capacity1.8 gal
Engine Oil Capacity2.3 gal
Hydraulic Fluid Capacity14.6 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A

Engine

Engine specifications
Engine Modele 4045D
Displacement276 in³
Gross Power73.0 hp
Net Power70.0 hp
AspirationNaturally aspirated

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.0 gal/min
Relief Valve Pressure2,750 psi
Pump TypeGear

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab108 in
Length of Track on Ground77 in
Width Over Tracks73 in
Length w/o Blade155 in

Transmission

Transmission specifications
Max Speed - Forward5.6 mph
Max Speed - Reverse6.1 mph
Transmission TypeFull power shift Dura-Shift with direct drive
Number of Forward Gears4
Number of Reverse Gears4

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Number of Track Rollers per Side5
Number of Shoes per Side37
Standard Shoe Size16 in
Ground Contact Area2,432 in³
Track Pitch6 in

Standard Blade

Standard Blade specifications
Width97 in
Height33 in
Capacity2.00 yd³
Blade Angle (both directions)25 °
