John Deere
544C
- Operating Weight
- 22,620 lb
- Bucket Capacity - heaped
- 2.00 yd³
- Gross Power
- 120.0 hp
- Net Power
- 110.0 hp
1 / 5

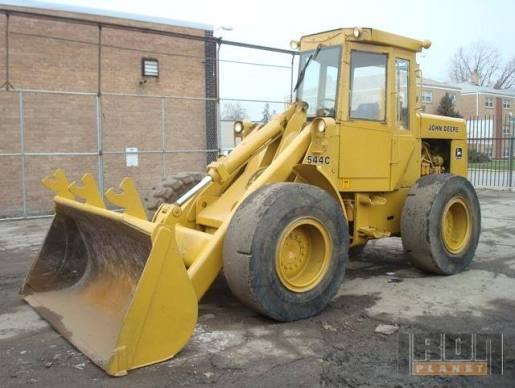

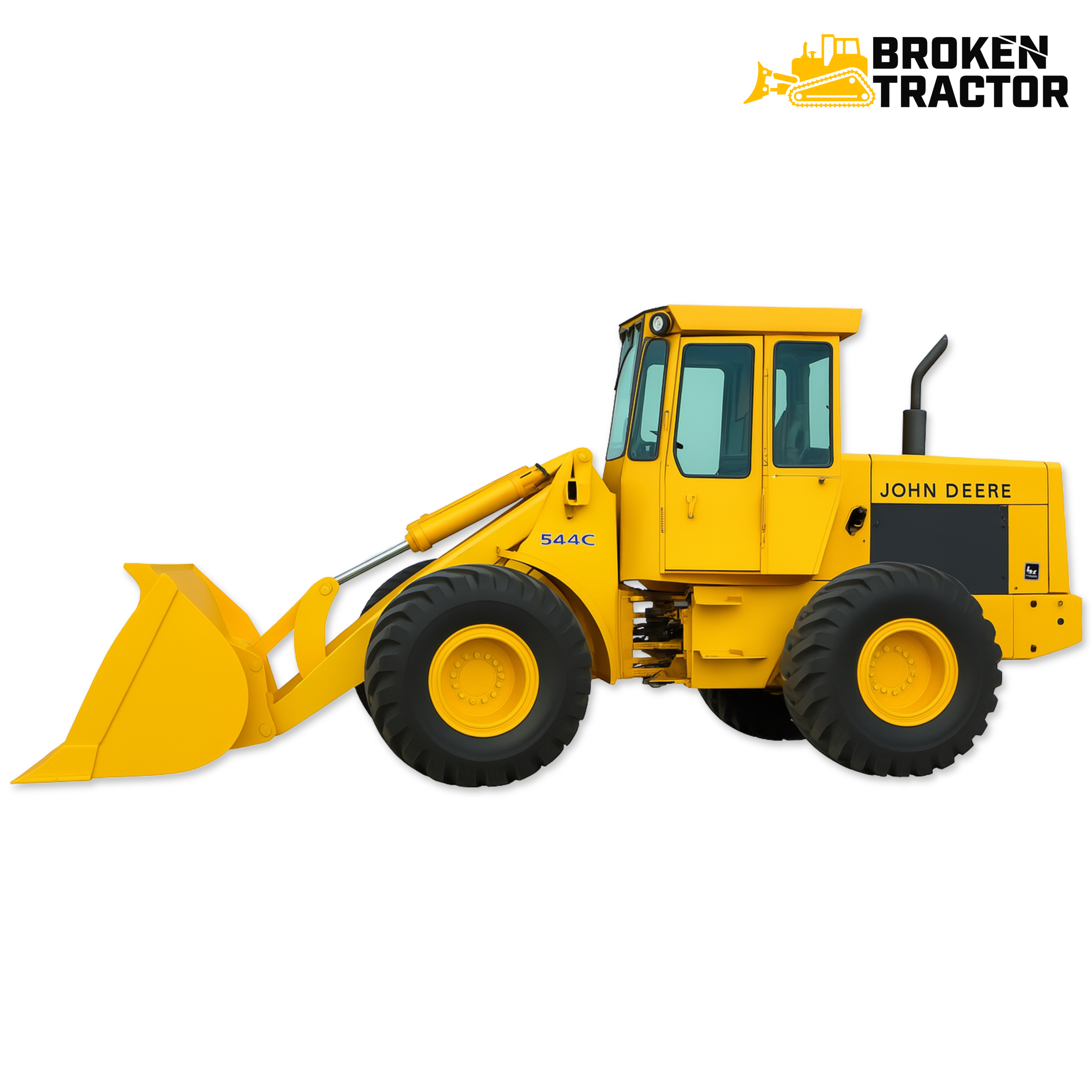

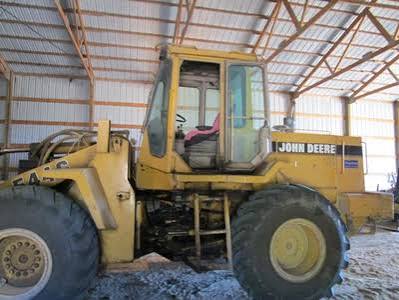

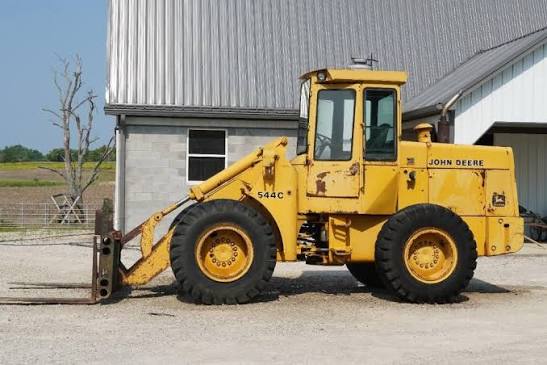

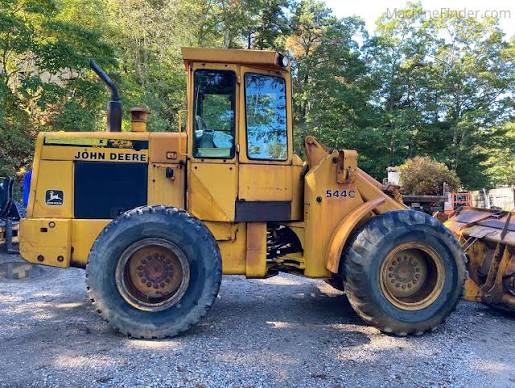

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 22,620 lb |
|---|---|
| Fuel Capacity | 40.0 gal |
| Tire Size | 17.5-25 |
| Hydraulic System Fluid Capacity | 14.1 gal |
| Static Tipping Weight | 16,060 lb |
| Operating Voltage | 12 V |
| Turning Radius | 175 in |
| Engine Oil Fluid Capacity | 5.1 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 42 A |
| Front Axle/Diff Fluid Capacity | 6.1 gal |
| Rear Axle/Diff Fluid Capacity | 6.1 gal |
| Cooling System Fluid Capacity | 6.9 gal |
| Transmission Fluid Capacity | 9.8 gal |
Engine
| Displacement | 414 in³ |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 120.0 hp |
| Net Power | 110.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 45.8 gal/min |
|---|---|
| Raise Time | 6.1 s |
| Lower Time | 4.0 s |
| Dump Time | 1.8 s |
| Relief Valve Setting | 2,625 psi |
| Pump Type | Gear -type pump |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 121 in |
| Wheelbase | 102 in |
| Width Over Tires | 88 in |
| Reach at Max Lift and Dump | 36 in |
| Length with Bucket on Ground | 244 in |
| Hinge Pin - Max Height | 144 in |
Transmission
| Max Speed - Forward | 27.9 mph |
|---|---|
| Max Speed - Reverse | 9.9 mph |
| Transmission Type | Power Shift planetary |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 2.00 yd³ |
|---|---|
| Bucket Capacity - struck | 1.70 yd³ |
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 20,520 lb |
| Bucket Width | 96 in |
