Case
21D
Wheel Loader
43 specifications
Zettelmeyer
ZL22C
- Operating Weight
- 13,668 lb
- Bucket Capacity - heaped
- 1.60 yd³
- Gross Power
- 77.8 hp
- Net Power
- 73.8 hp
1 / 5

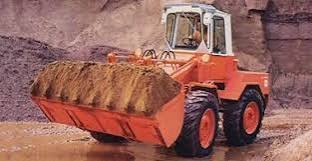

Image 1 of 5
Specifications
30 data points
Operating Specifications
| Operating Weight | 13,668 lb |
|---|---|
| Fuel Capacity | 31.8 gal |
| Tire Size | 15.5-25 EM 10 PR |
| Static Tipping Weight | 8,377 lb |
| Operating Voltage | 12 V |
| Turning Radius | 193 in |
Engine
| Displacement | 230 in³ |
|---|---|
| Power Measured @ | 2,500 rpm |
| Gross Power | 77.8 hp |
| Net Power | 73.8 hp |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 25.1 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.5 s |
| Relief Valve Setting | 2,560 psi |
| Pump Type | 2 lift/2bucket double action |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 111 in |
| Wheelbase | 88 in |
| Reach at Max Lift and Dump | 29 in |
| Length with Bucket on Ground | 214 in |
| Hinge Pin - Max Height | 137 in |
Transmission
| Max Speed - Forward | 15.6 mph |
|---|---|
| Max Speed - Reverse | 15.6 mph |
| Transmission Type | 2 speed power drive |
Bucket
| Bucket Capacity - heaped | 1.60 yd³ |
|---|---|
| Bucket Capacity - struck | 1.40 yd³ |
| Dump Clearance at Max Raise | 108 in |
| Breakout Force | 13,227 lb |
| Bucket Width | 89 in |
