John Deere

60D

Mini Excavator

Operating Weight
13,653 lb
Max Digging Depth
149 in
Net Power
54.0 hp
All mini excavators

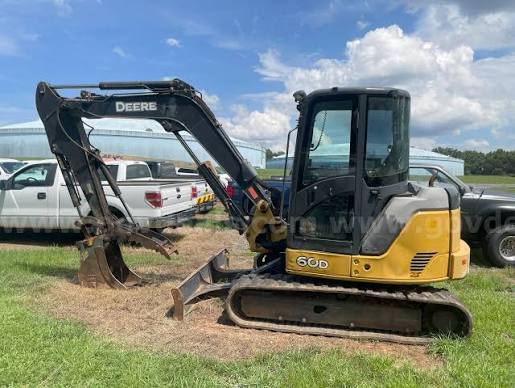

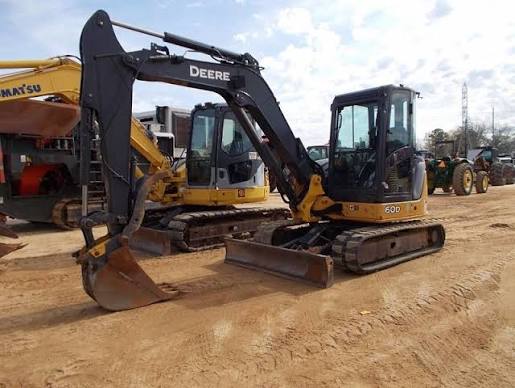

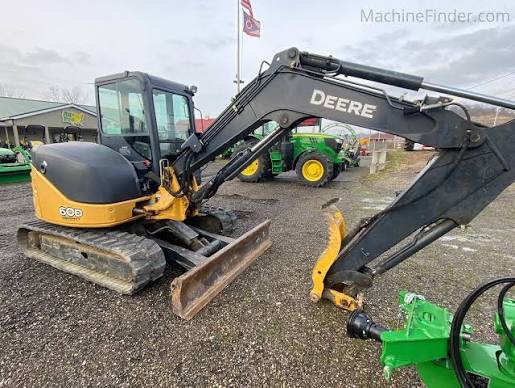

John Deere 60D Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,653 lb
Fuel Capacity31.8 gal
Hydraulic Pump Flow Capacity38.1 gal/min
Hydraulic System Fluid Capacity10.9 gal
Operating Voltage12 V
Alternator Supplied Amperage50 A
Engine Oil Capacity3.0 gal

Engine

Engine specifications
Engine Model4TNV98 Tier IIII certified
Displacement194 in³
Power Measured @2,000 rpm
Net Power54.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab101 in
Width to Outside of Tracks79 in
Removal Counterweight Clearance25 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed2.8 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth149 in
Max Reach Along Ground245 in
Max Loading Height165 in
Shipping Length of Unit227 in
Max Cutting Height235 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth163 in
Max Cutting Height245 in
Max Loading Height174 in
Shipping Height of Unit101 in
Shipping Length of Unit228 in
