Gehl

373

Mini Excavator

Operating Weight
8,215 lb
Max Digging Depth
124 in
Net Power
32.0 hp
All mini excavators

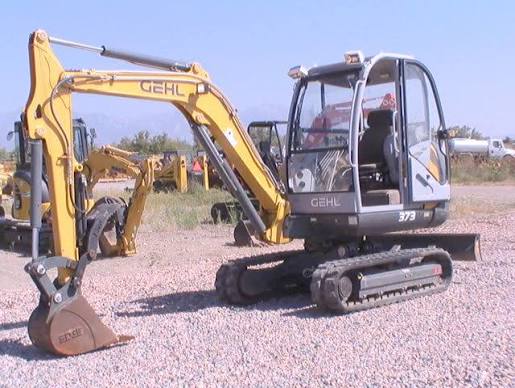

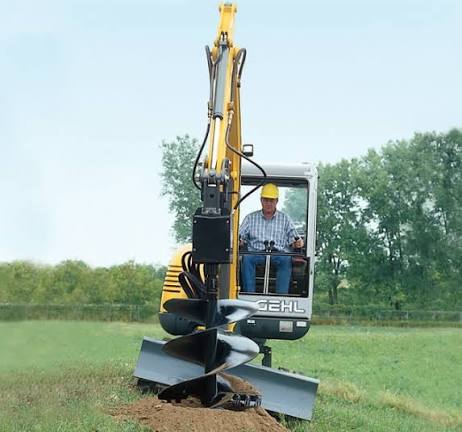

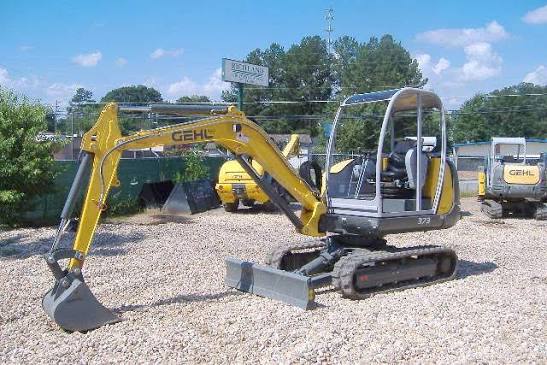

Gehl 373 Mini Excavator
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

32 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,215 lb
Fuel Capacity13.8 gal
Hydraulic Pump Flow Capacity28.2 gal/min
Hydraulic System Fluid Capacity13.3 gal
Hydraulic System Relief Valve Pressure3,481 psi
Operating Voltage12 V
Alternator Supplied Amperage88 A

Engine

Engine specifications
Engine ModelYanmar 4TNV88-WNS A TIER II
Displacement134 in³
Power Measured @2,000 rpm
Net Power32.0 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab100 in
Length of Track on Ground64 in
Tail Swing Radius55 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Number of Track Rollers per Side4
Max Travel Speed3.0 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth124 in
Max Reach Along Ground207 in
Max Vertical Wall Digging Depth84 in
Max Loading Height152 in
Max Cutting Height198 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth135 in
Max Cutting Height206 in
Max Loading Height156 in
Max Vertical Wall Digging Depth95 in
Max Reach Along Ground219 in
