Hitachi

ZX30U-5

Mini Excavator

Operating Weight
6,850 lb
Max Digging Depth
110 in
Net Power
23.4 hp
All mini excavators

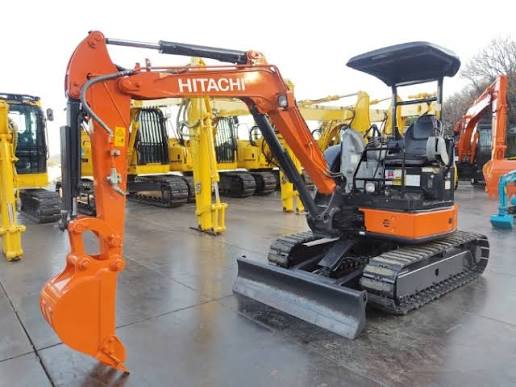

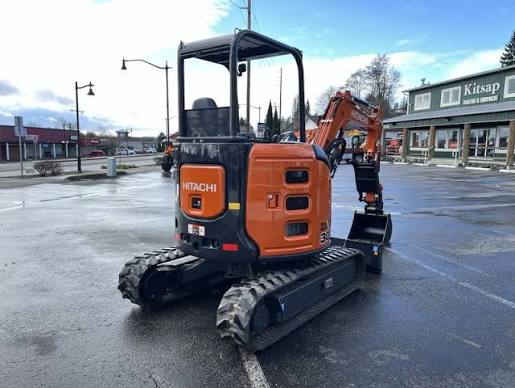

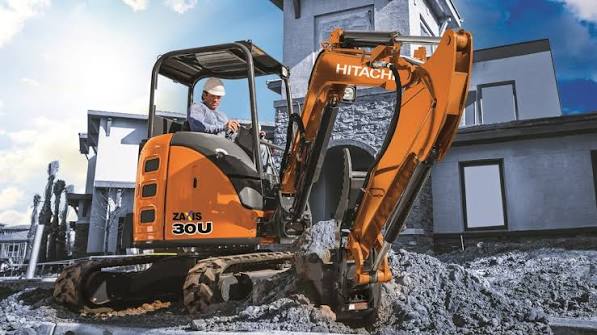

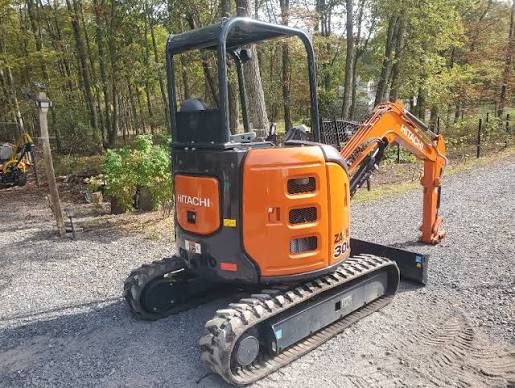

Hitachi ZX30U-5 Mini Excavator
1 / 5
Image 1 of 5
Image: hitachicm.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,850 lb
Blade height15 in

Engine

Engine specifications
Engine Model3TNV88F-EPHB
Displacement100 in³
Power Measured @2,400 rpm
Net Power23.4 hp
Alternator55 A
Emission Tier LevelEPA Final Tier 4

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow16.2 gal/min

Dimensions

Dimensions specifications
Ground Clearance12 in
Tail Swing Radius31 in
Track Width12 in
Counterweight Clearance23 in
Undercarriage Overall Length74 in

Fluid Capacities

Fluid Capacities specifications
Fuel Tank11.1 gal
Hydraulic system14.8 gal
Cooling system1.4 gal
Hydraulic Tank6.4 gal
Engine oil with filter2.0 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth110 in
Max Reach Along Ground193 in
Max Cutting Height182 in
Max.Dumping Height127 in
Max Digging Reach193 in
Minimum swing radius62 in

Bucket

Bucket specifications
Bucket digging Force - SAE6,070 lb
Arm digging Force3,822 lb

Swing Mechanism

Swing Mechanism specifications
Swing Speed20 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth110 in
Max Cutting Height175 in
Max.Dumping Height110 in
Max Digging Reach193 in
Minimum swing radius72 in

Performance

Performance specifications
Travel speed low1.8 mph
Travel Speed - High2.7 mph
